ESA-Athena Series

Balcony All-in-One Solar Storage

Reliable daily power — efficient, smart, designed for real life.

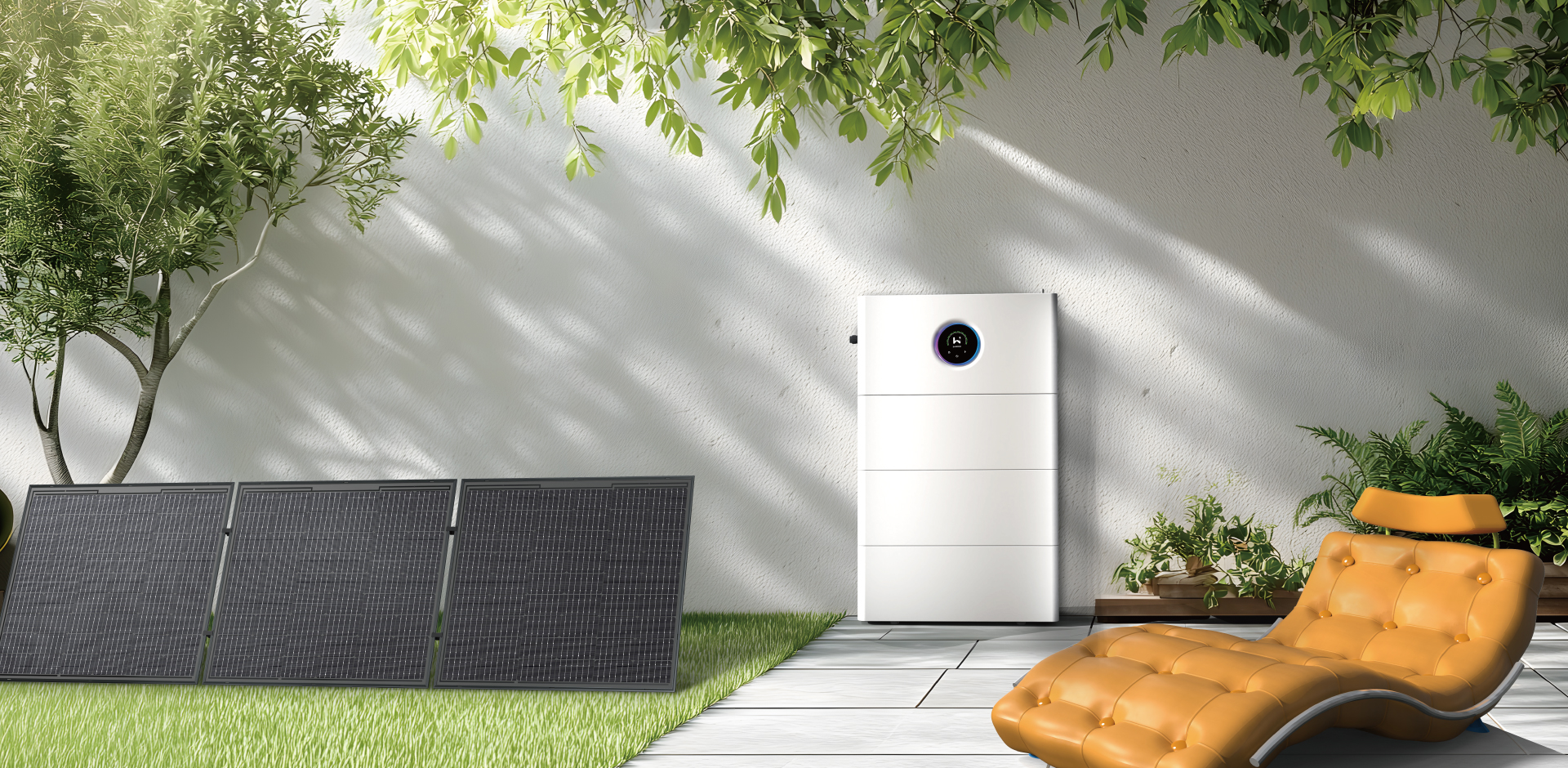

Combine Suncake and ESA-Athena for full energy.

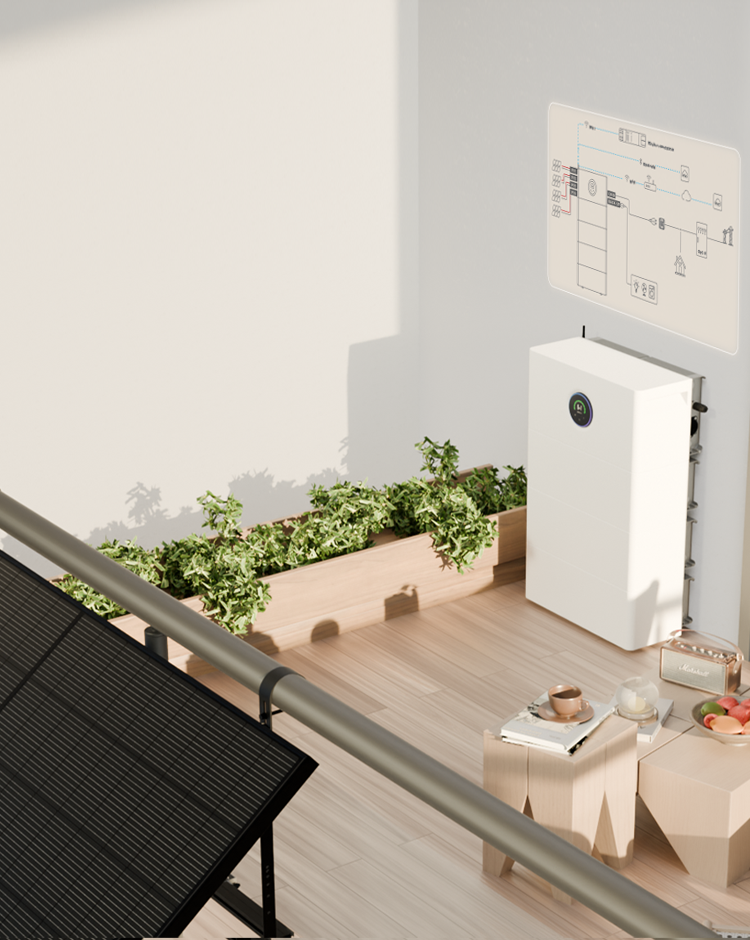

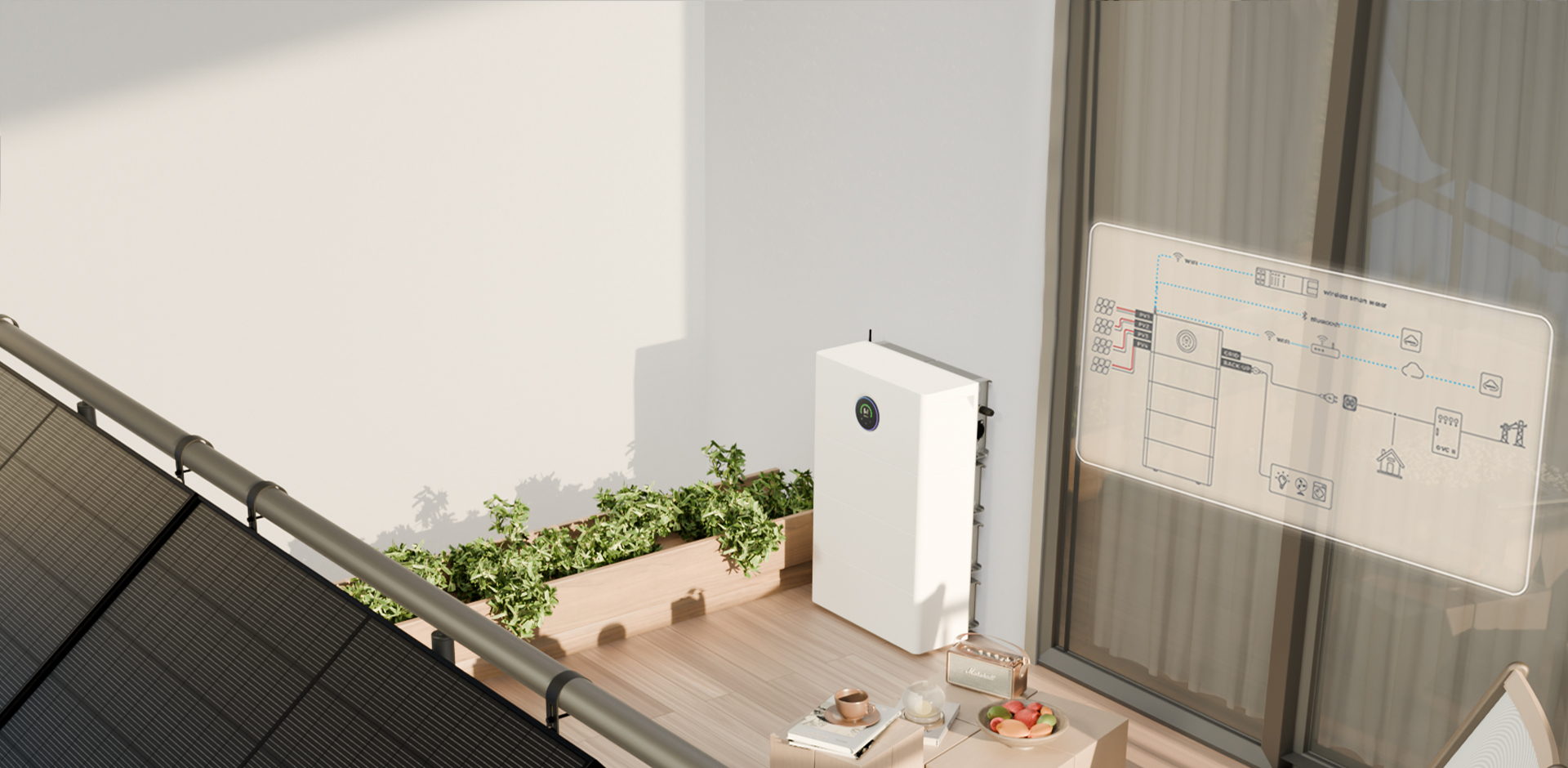

Power Meets Storage

Learn more

Home Backup Power That Never Stops.

Athena charges when electricity is cheapest – and powers your home when demand peaks.

Smart Backup Before the Storm

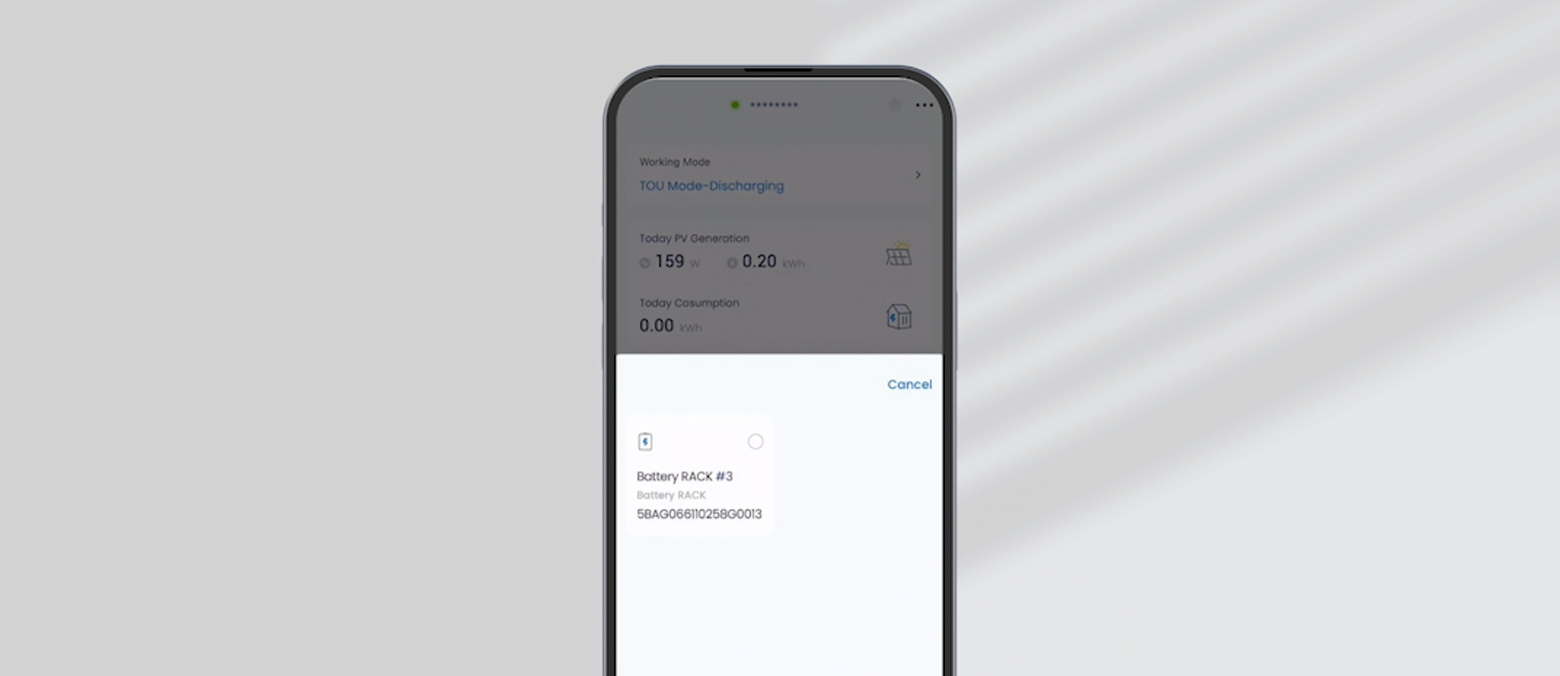

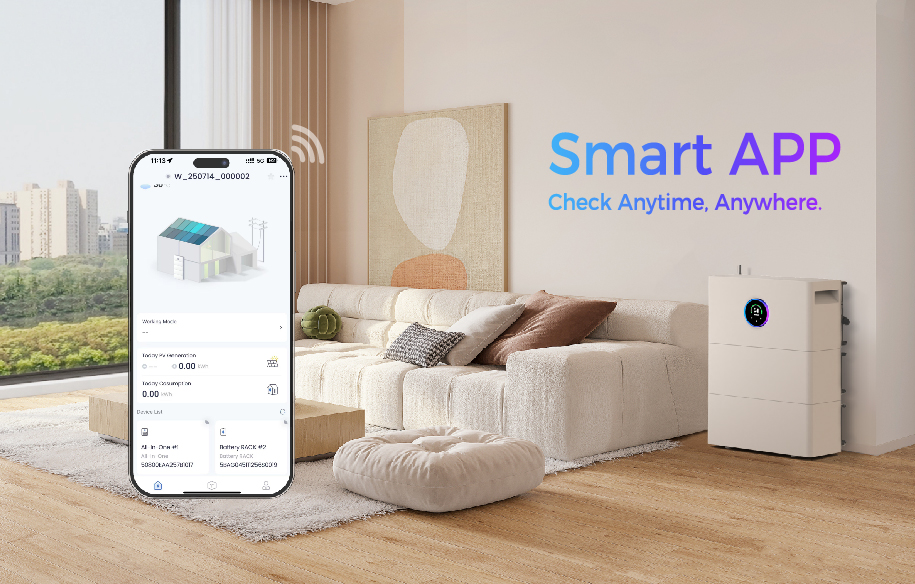

The ESA-Athena micro storage system monitors your home and weather forecasts, automatically switching to backup before the grid fails. Through the app, you can see exactly what’s powered, where energy flows, and how your micro storage keeps you protected.

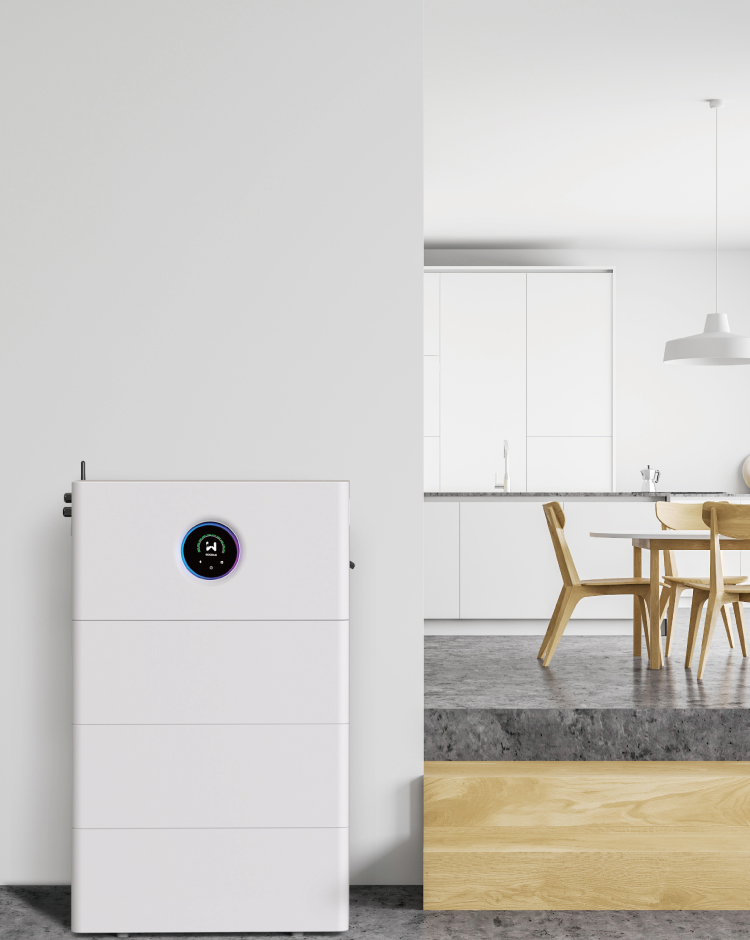

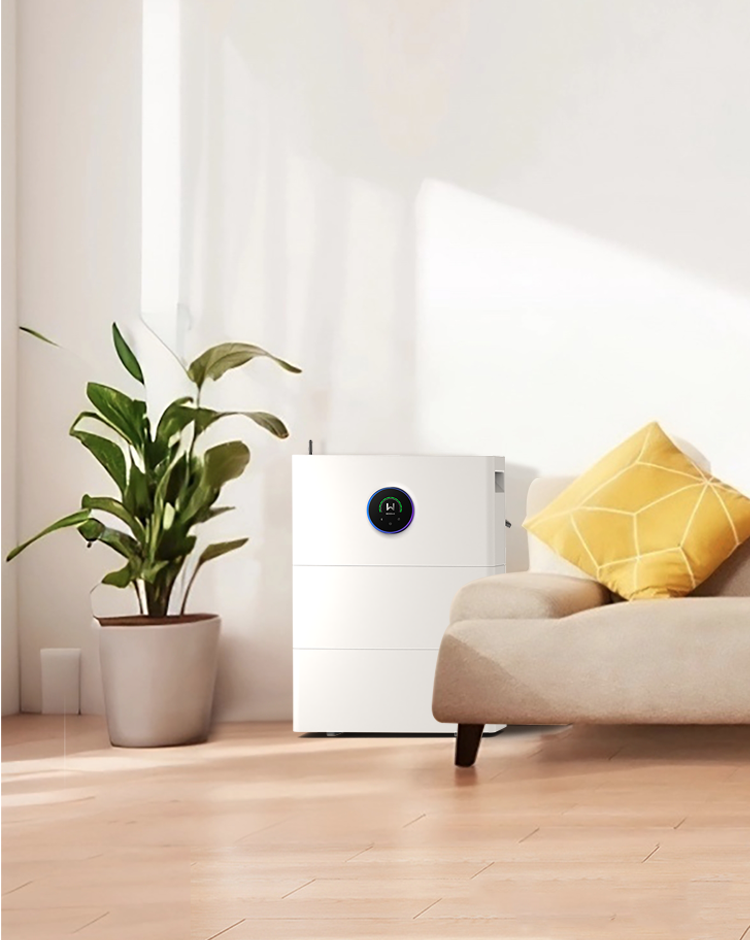

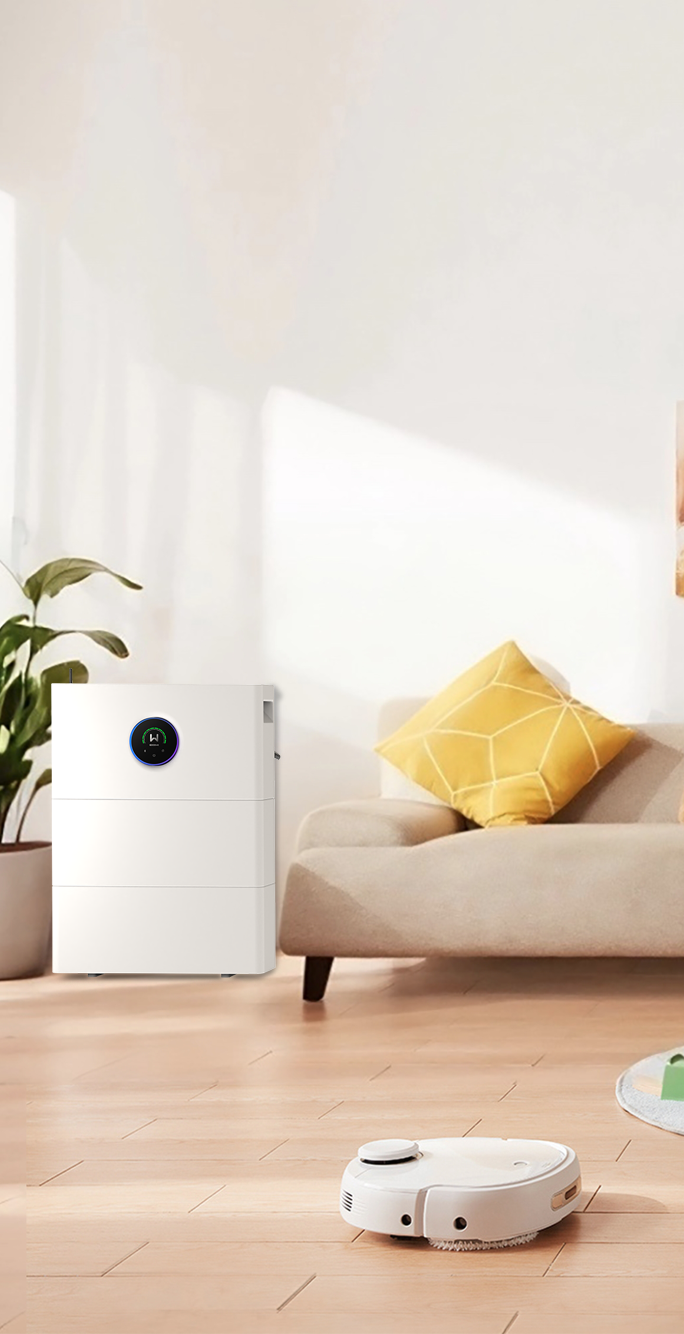

Power at Home

If the grid goes down, the ESA-Athena micro storage system steps in. Your lights stay on, the fridge keeps running, and the internet remains active. No stress, no interruption – just the peace of mind knowing your home is powered by reliable micro storage.
- Wifi Router
  10W

  196Hours
- Pedestal Fan
  60W

  32.7Hours
- LCD TV
  150W

  13.1Hours
Power Anywhere

Whether camping by the beach, traveling in nature, or simply enjoying time off the grid, the ESA-Athena micro storage system provides light, power, and peace of mind. Wherever you go, your micro storage ensures your energy goes with you.
- Water Dispenser
  100W

  19.6Hours
- iMac
  240W

  8.2Hours
- Projector
  270W

  7.3Hours

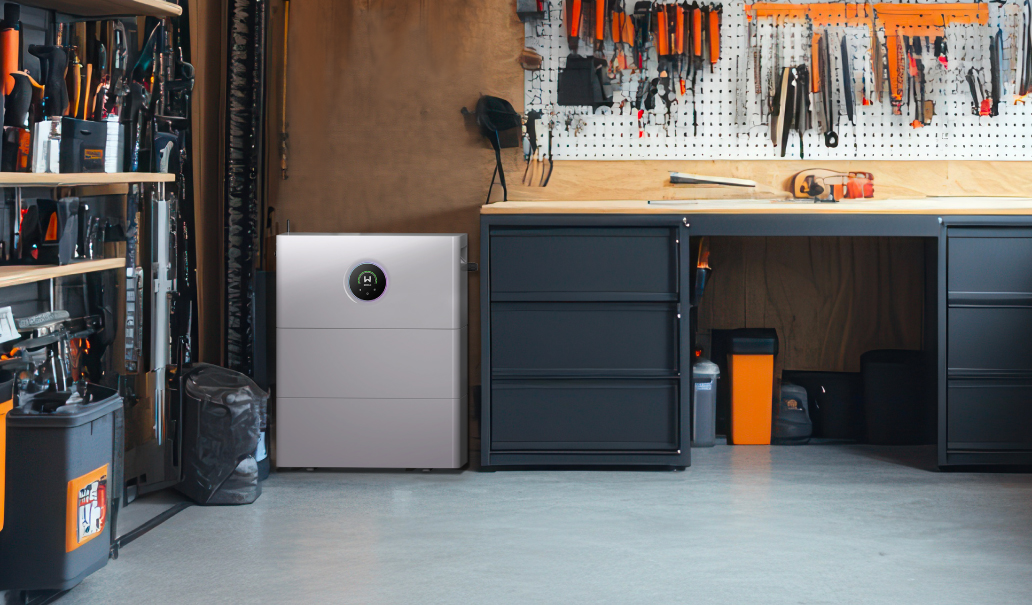

Power Workstation

Whether it’s your drill in the workshop, your screen at home, or keeping the Wi-Fi steady, the ESA-Athena micro storage system ensures your tools and devices keep running. Reliable energy, wherever you need it, thanks to dependable micro storage.
- Strimmer
  500W

  3.9Hours
- Corded Drill
  850W

  2.3Hours
- Belt Sander
  1000W

  2Hours

Home Backup Power
Off - Grid Life
Professional Tools

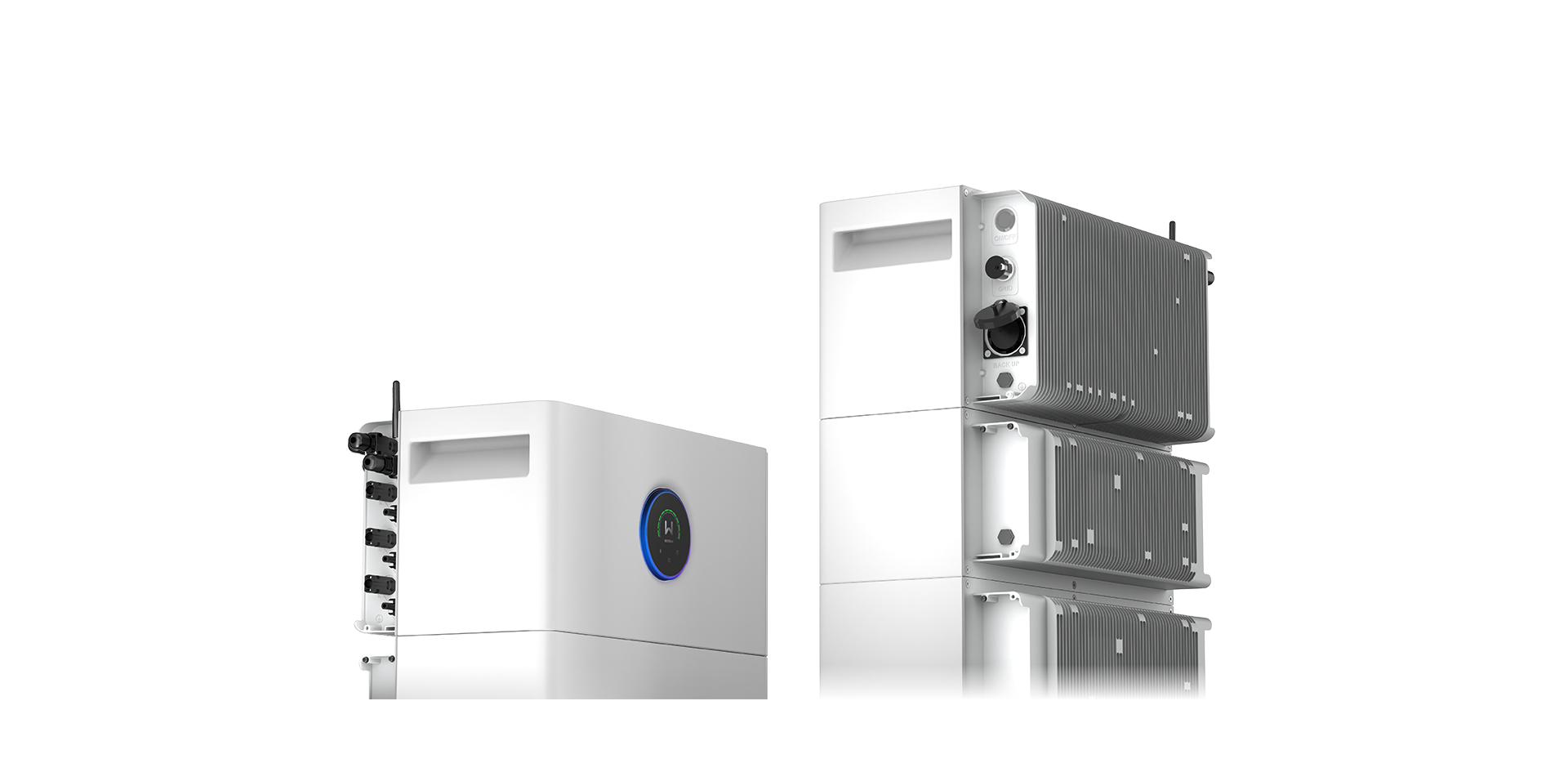

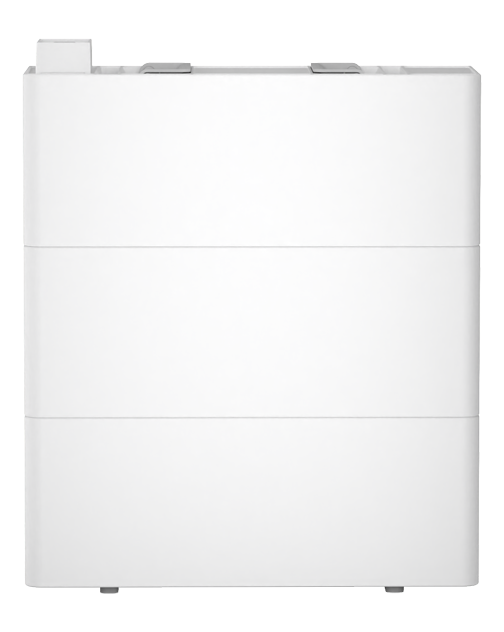

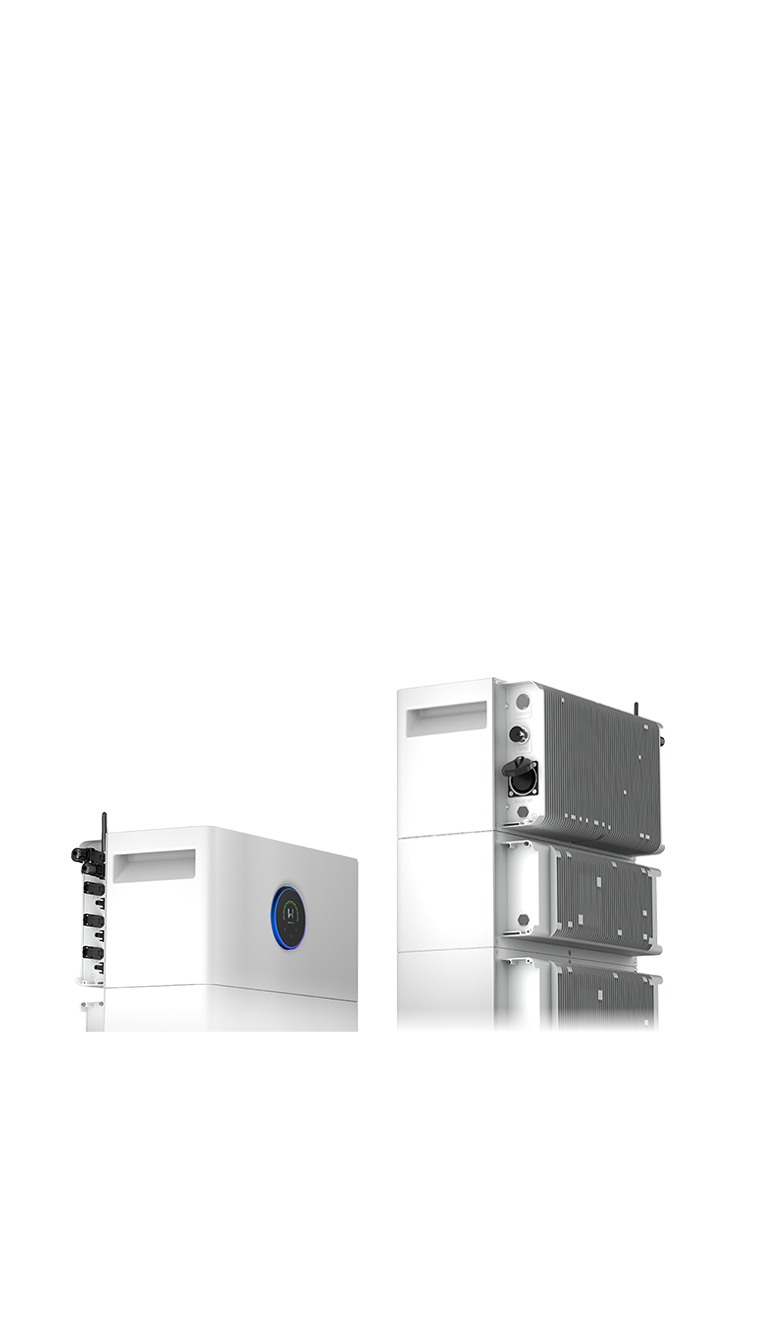

Antenna
PV Input Terminal
ON/OFF Switch
GRID Port
BACK-UP Port
Breather Valve

Technical Specs

Download

GW0.8/1.9-ESA-PS-G10

Max. PV Input Power

2400W

Number of MPPT Trackers

Operating Voltage Range

13–60 V DC

Max.MPPT Current

18A

Battery Type

LiFePO4

Rated Energy

1.92kWh

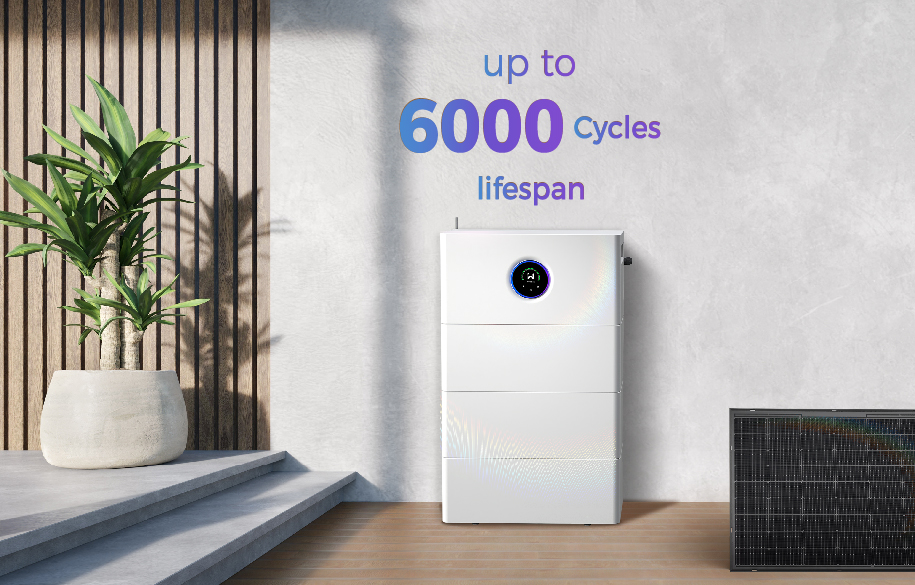

Cycle Life

＞6000

On-grid AC Output

800W

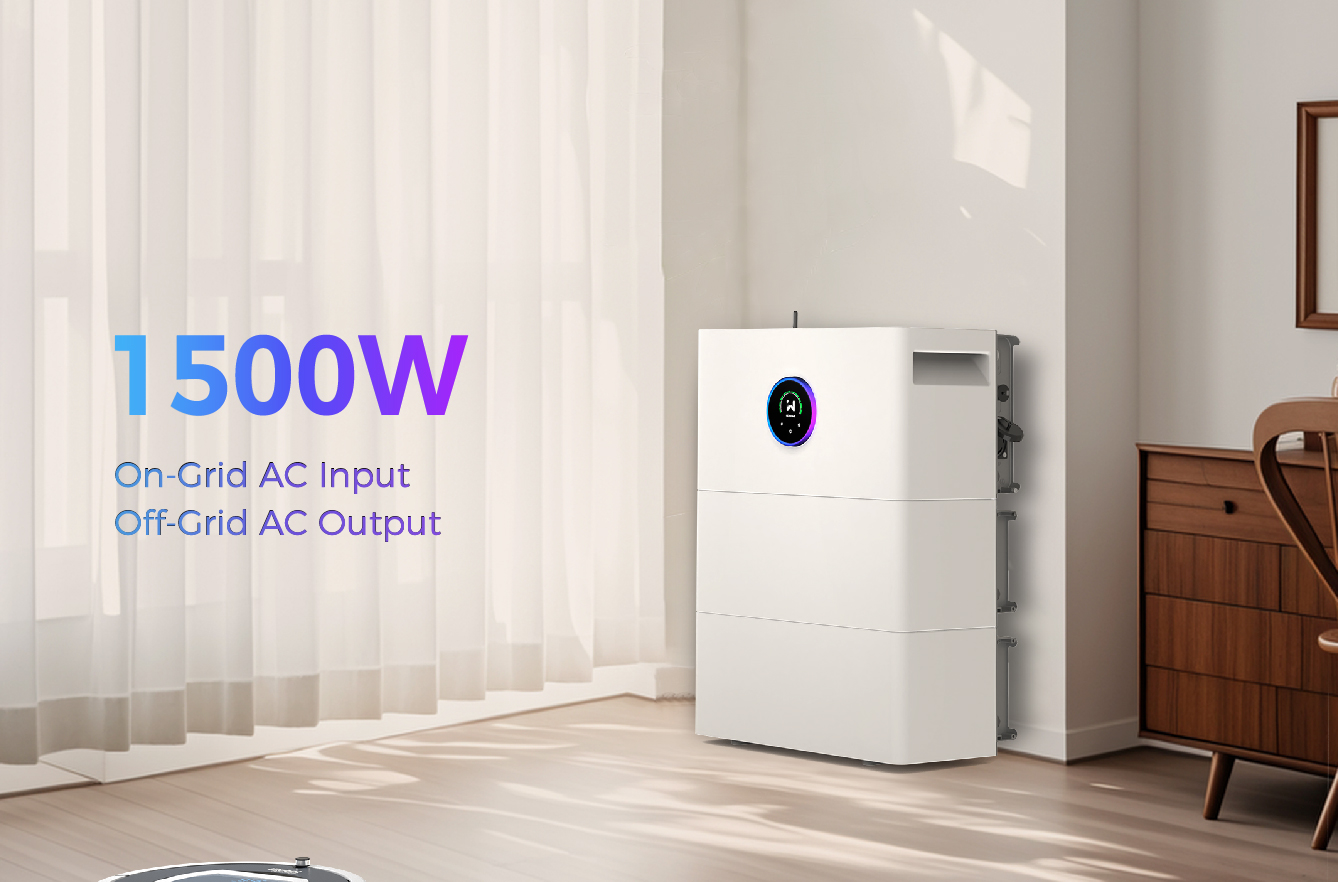

Off-grid AC Output

1500W

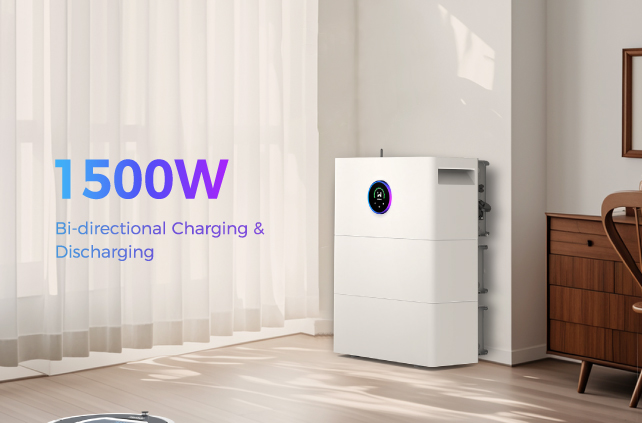

Maximum AC Charging Power

1500W

Connectivity

Bluetooth, Wi-Fi

Protection Rating

IP65

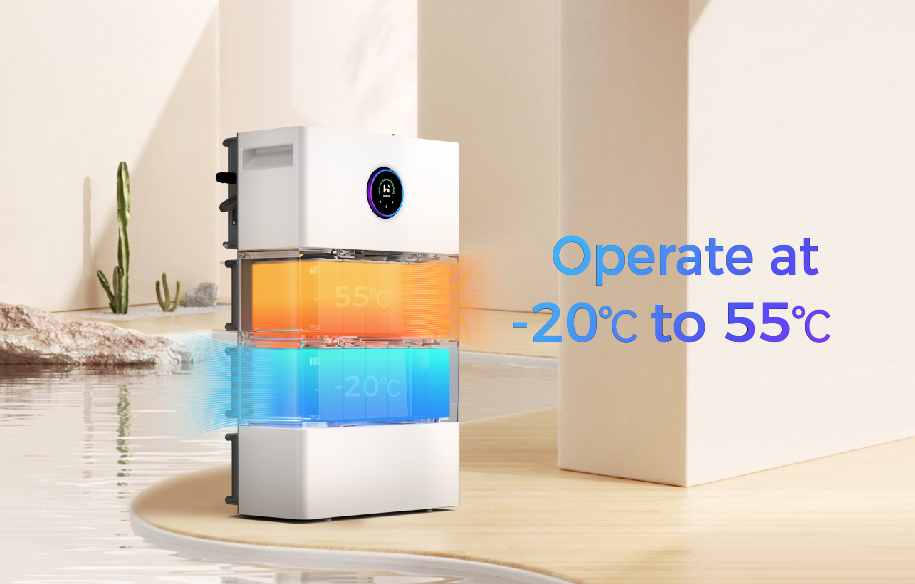

Operating Temperature Range

-20°C ~ 55°C

Dimensions(W×H×D)

480×249×260mm

Net Weight

26kg

Product Warranty

10Years

GW1.9-BAT-LVD-G10

Battery Type

LiFePO4

Rated Capacity

100Ah

Rated Energy

1.92kWh

Nominal Voltage (Battery)

19.2Vd.c.

Charging Temperature Range

-20℃~+55℃

Discharging Temperature Range

-20℃~+55℃

Operating Voltage Range (System)

52...56Vd.c.

Max. Input/Output Current (System)

30Ad.c./30Ad.c.

Weight

21kg

Max. Input/Output Power (System)

1.6kW/1.6kW

Dimensions (W×H×D)

480mm*180mm*260mm

Ingress Protection

IP65

Operating Temperature Range

-20°C ~ 55°C

Product Warranty

10Years

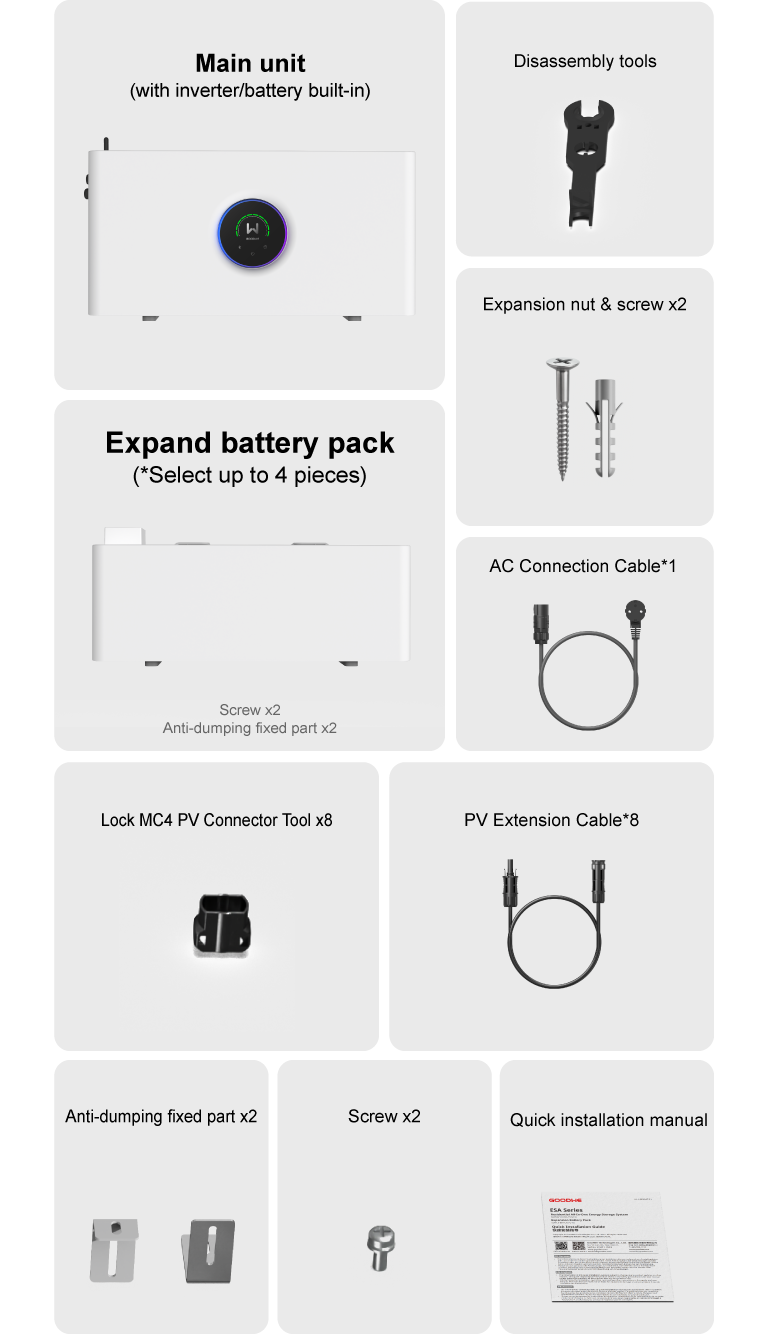

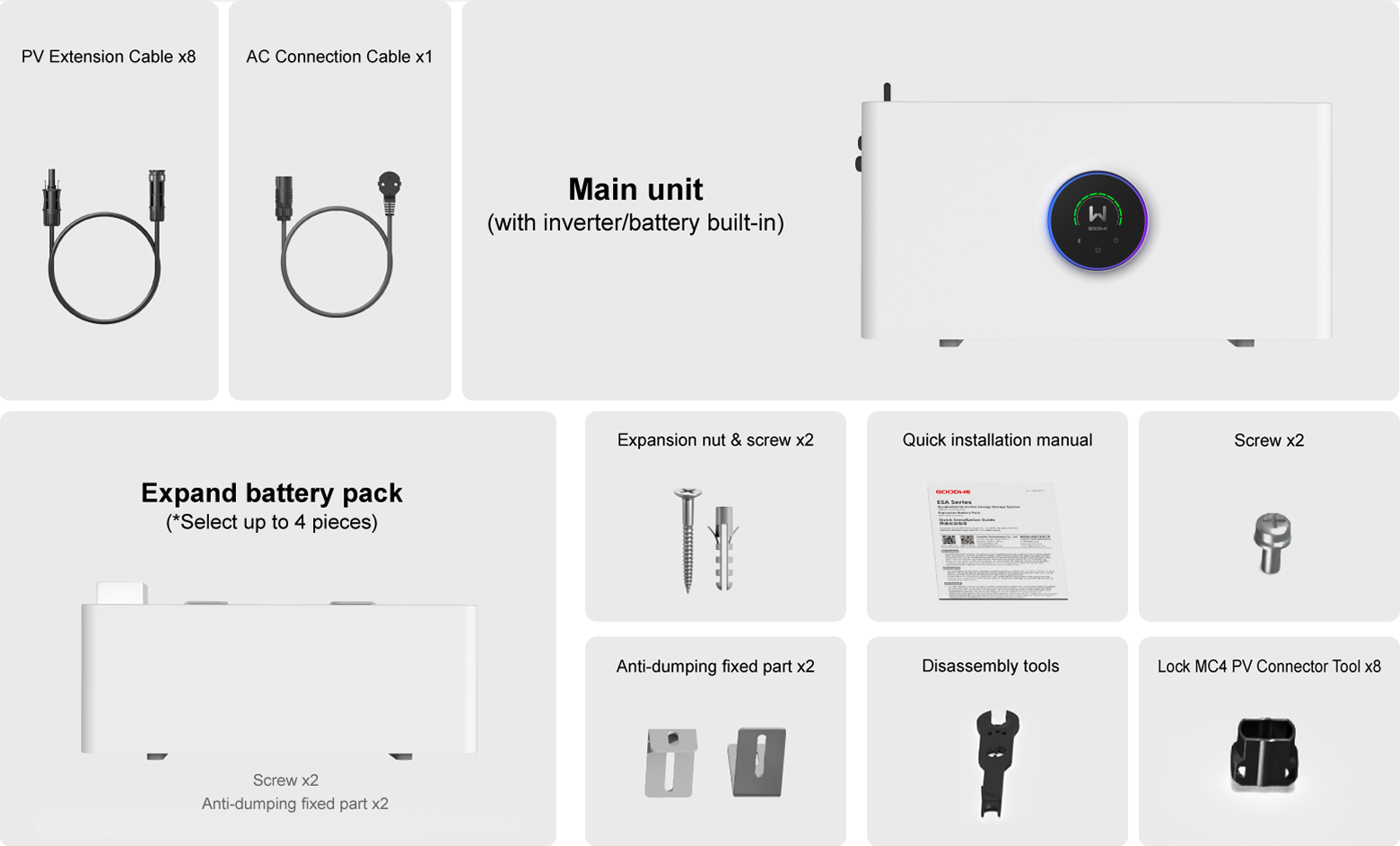

What's in the box?

Installation Procedure

1

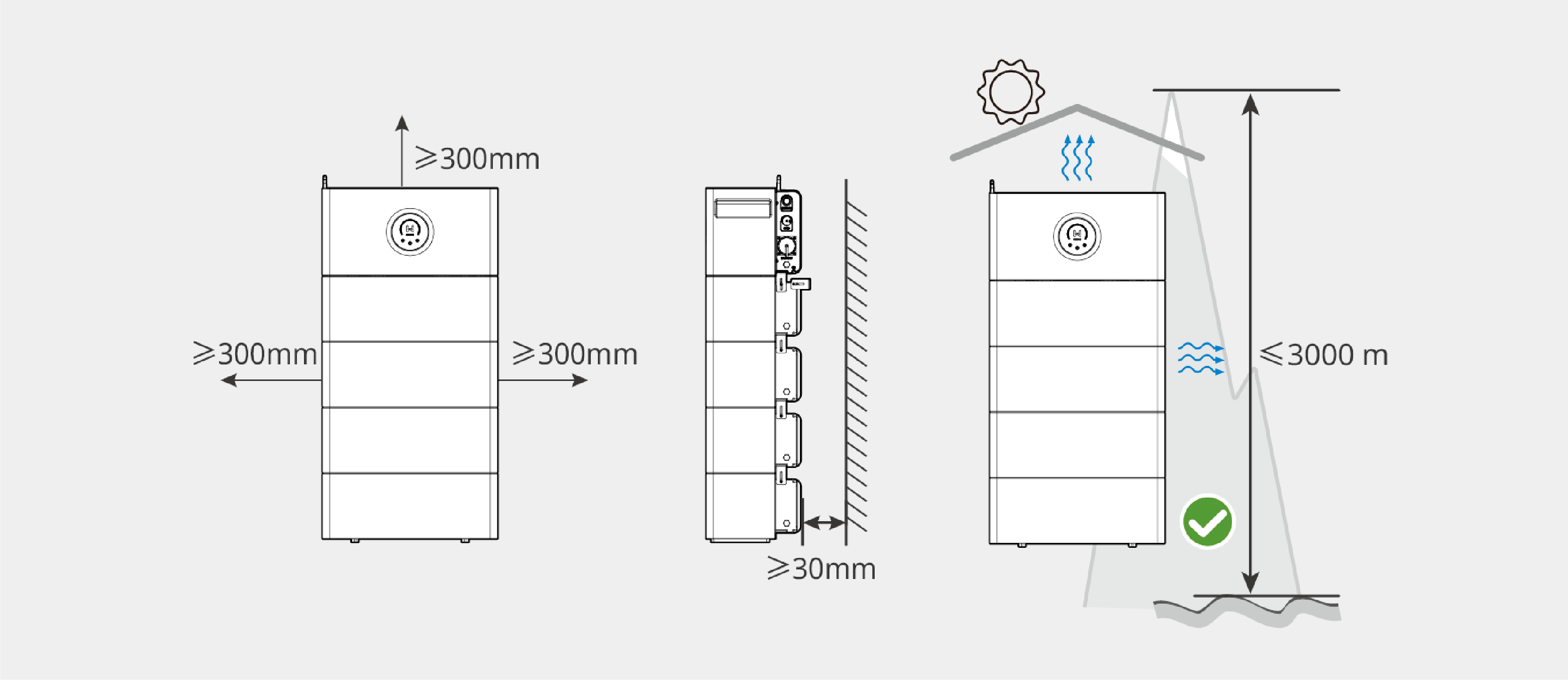

Site Selection & Equipment Setup
2

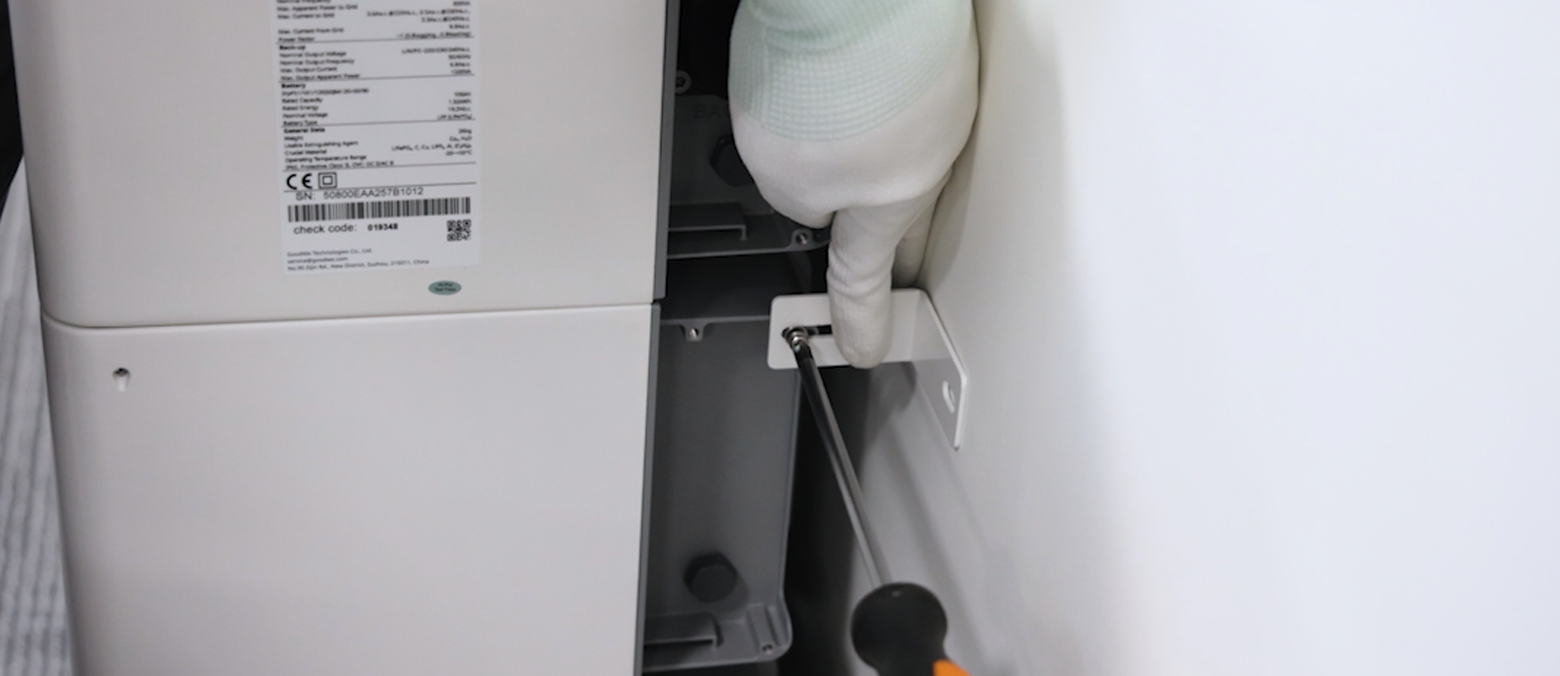

Drilling and Mounting Preparation
3

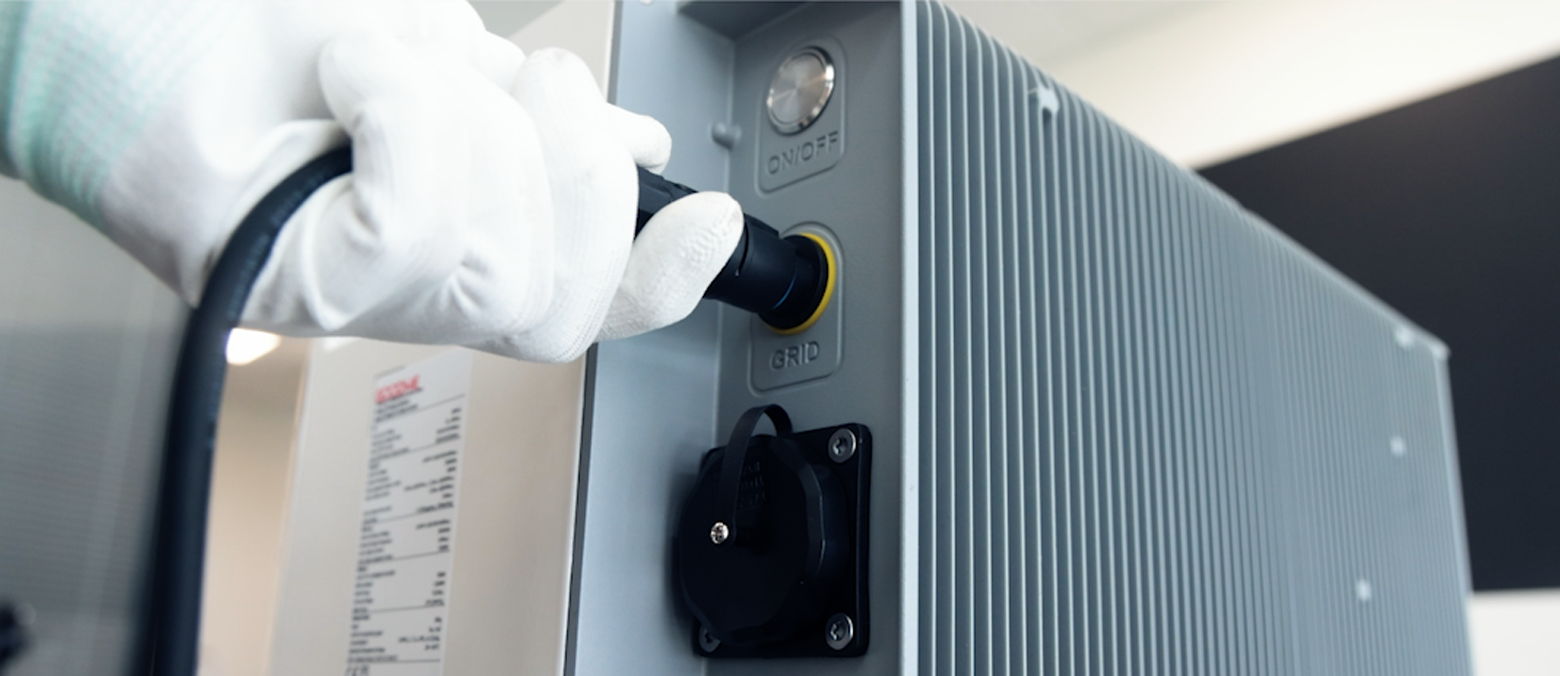

Wiring Connections and Power On
4

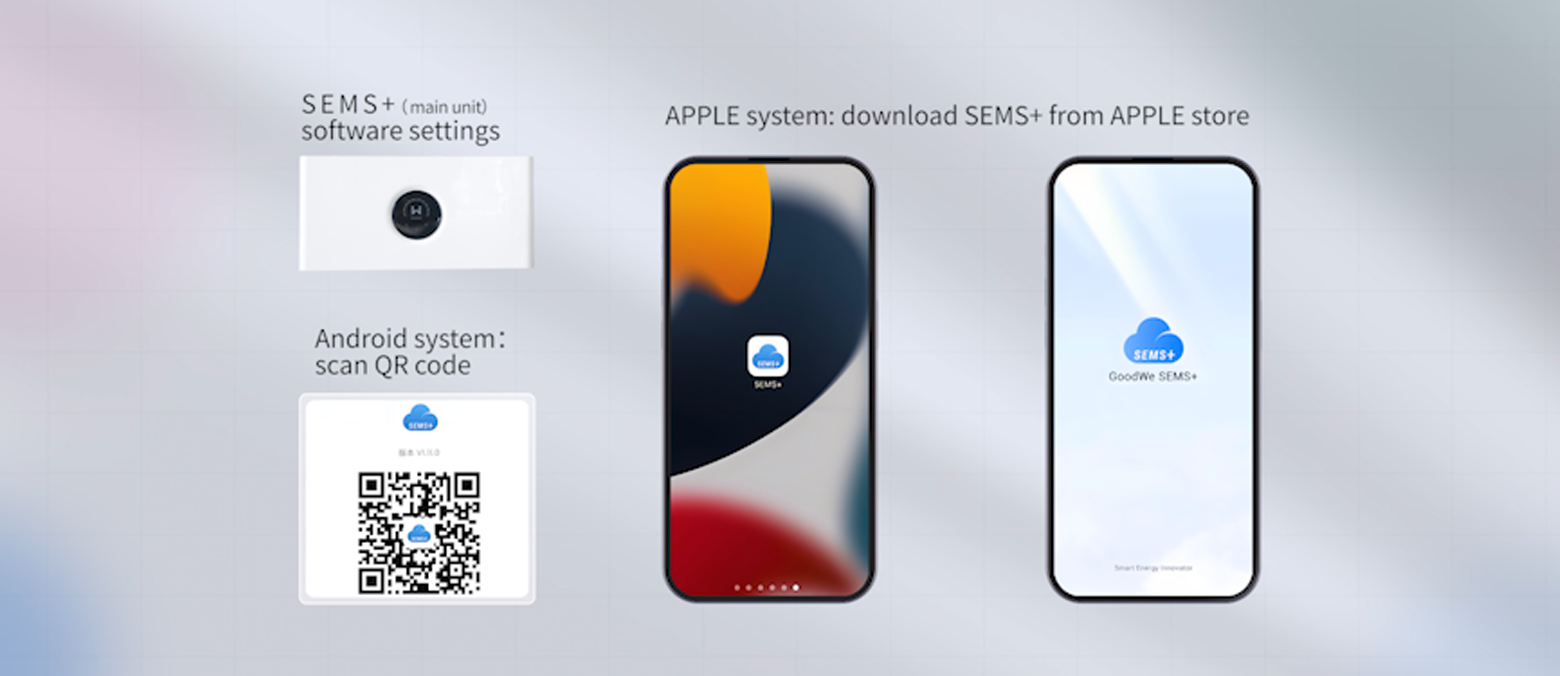

App Download and Initial Setup
5

Power-On Testing and Inspection

FAQ

Usage Issues
Safety Issues

How does the micro storage connect to my home grid? Is it complicated?

It's very simple. The system includes an AC cable that plugs directly into a standard outdoor power outlet. It's a true plug-and-play system. No complex electrical work is required.
How much electricity can one Suncake unit generate per day?

Depending on your location and sunlight exposure, a single 800W Suncake system can generate approximately 2.5 to 4 kWh per day on average, which can power a refrigerator for a day or charge an electric bike multiple times.
Can two micro storage units be connected together?

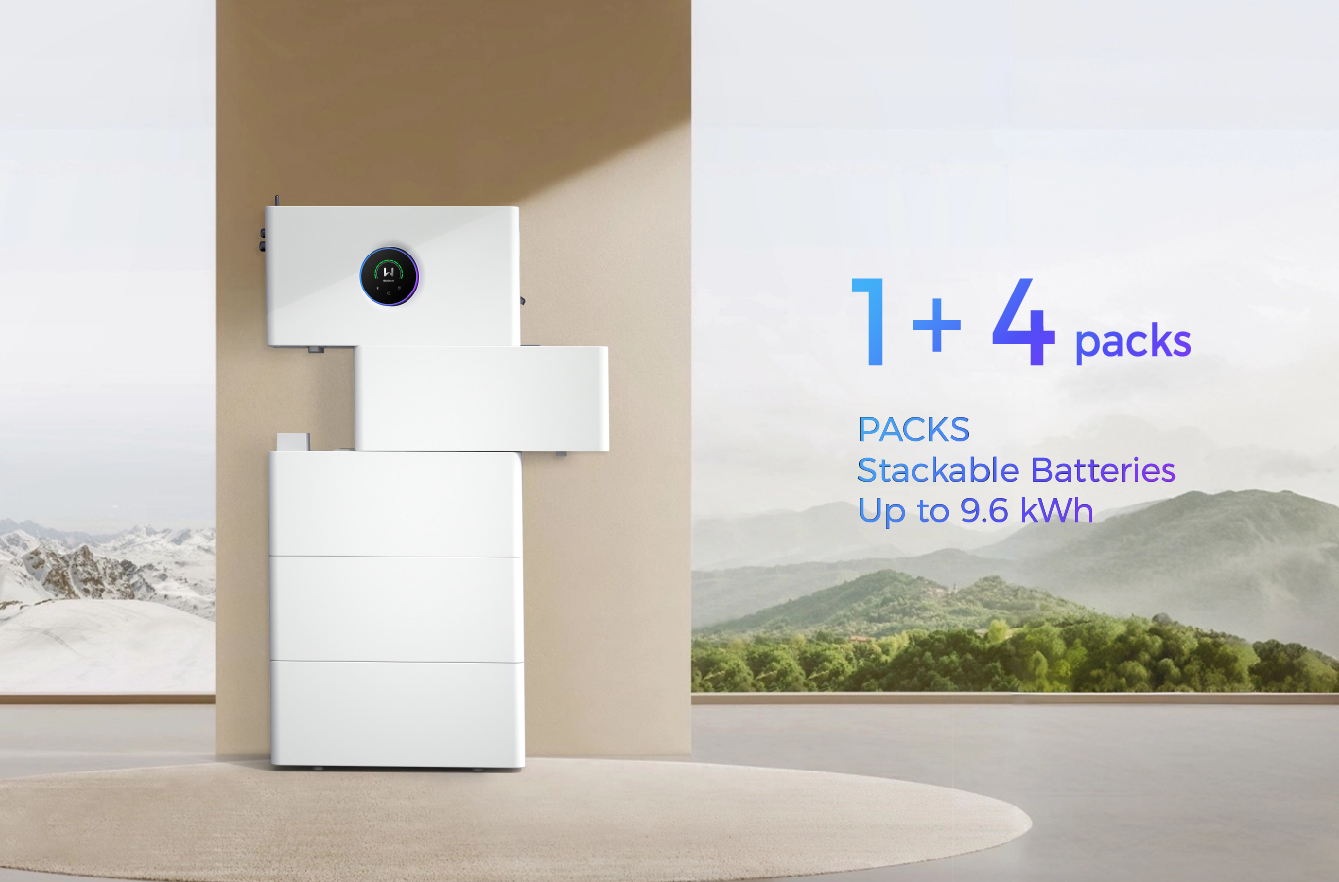

Currently, parallel connection between two main units is not supported. Expansion is only possible through designated battery expansion modules.
Does the system support mixed use of new and used batteries?

Yes, the system supports hybrid use of new and second-life batteries, thanks to smart BMS and balancing control algorithms.
What safety protection features are included?

The system comes equipped with multiple safety features:
· IP65-rated enclosure for dust and water protection
· Level 3 AC surge protection
· Remote shutdown
What are the standard transportation methods?

Our systems support both sea freight and land transportation.

load moremore loaded

I see some products are not certified for grid connection. Is ESA-Athena certified in Europe?

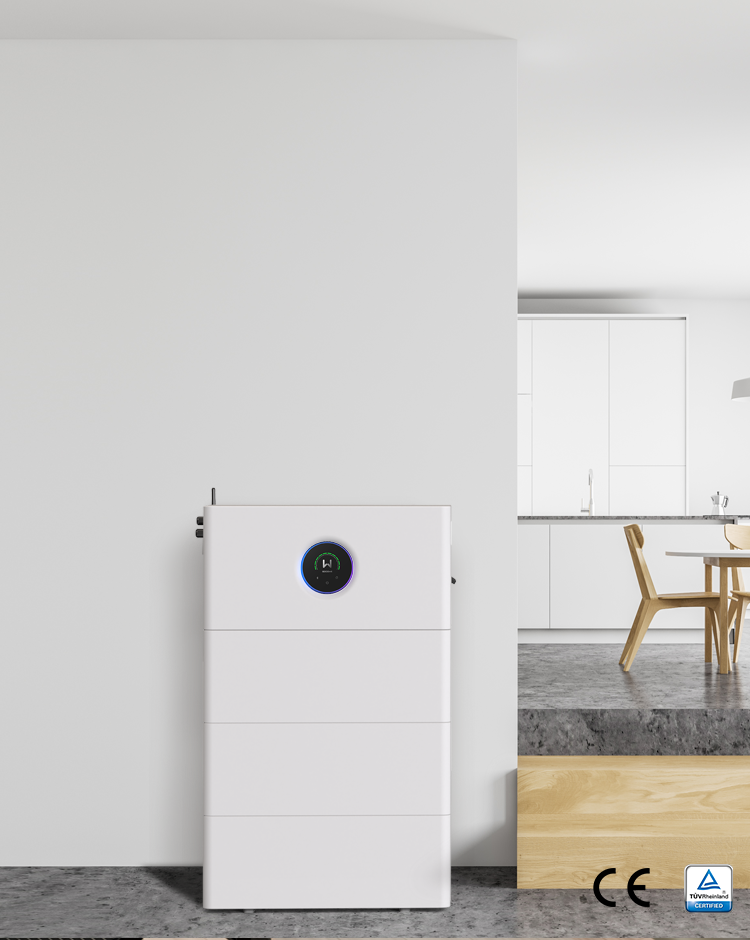

Absolutely. Both Suncake and its micro storage unit meet all key EU safety and grid-connection standards (such as CE and VDE 4110). This guarantees the system is safe, legal, and compliant for home use. Always look for certified products—uncertified ones may be illegal to connect and could void your home insurance.
Does the ESA-Athena micro storage system have protection against power surges or short circuits?

Yes, the ESA-Athena Micro Storage Unit has multiple safety protections, including anti-islanding, ground fault detection, and over-voltage/over-current protection, ensuring safe operation within your home's electrical system.
Will ESA-Athena still generate power on a cloudy day?

Yes, it will. While generation is highest under direct sunlight, the monocrystalline solar cells are efficient enough to still produce a meaningful amount of electricity on cloudy or overcast days.
Is it safe to use micro storage during rain or snow?

Yes. The ESA-Athena features an IP66 protection rating, ensuring it is fully waterproof and dustproof. It is engineered to withstand a wide range of outdoor weather conditions.
