Sunshine Series
Integrated Solar Roof Tile
-
Shine Your House
-
Ideal for Pitched Roof Systems on Villa/ Hotel Building/ Community Building/ Public Building
Transform your roof into a power source with Sunshine solar tiles. Certified for Class A fire protection, these double-layer tempered glass tiles are easy to install and blend seamlessly, providing energy generation while ensuring proper drainage, ventilation, and safety.
-
Class A Fire Test Rating
-
Hurricane Wind-Resistance
-
Structural Waterproofing
-
Same Life Cycle as Buildings
-
Modular Design & Easy to Replace
-
Self-cleaning & Unobstructed Drainage
-

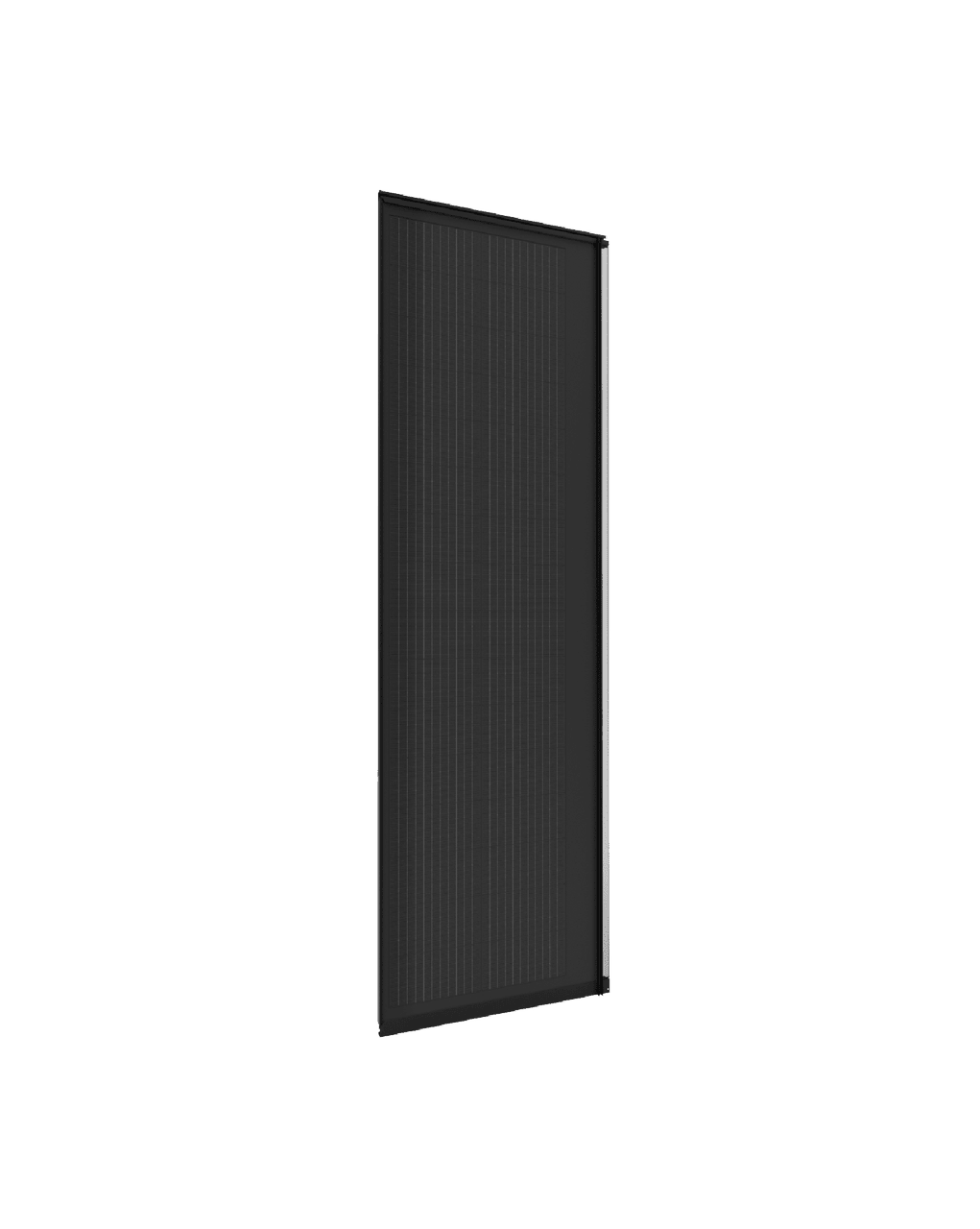

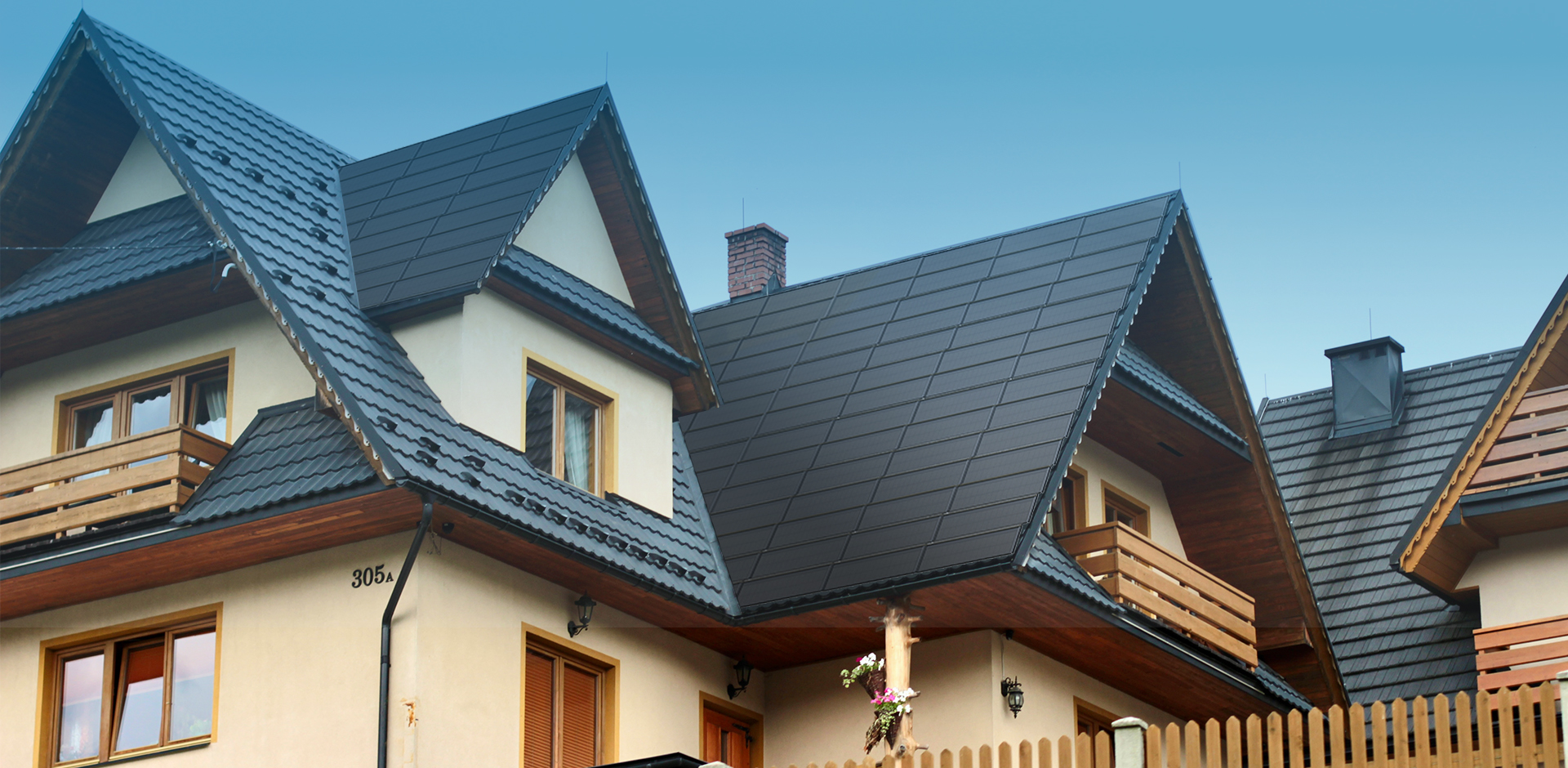

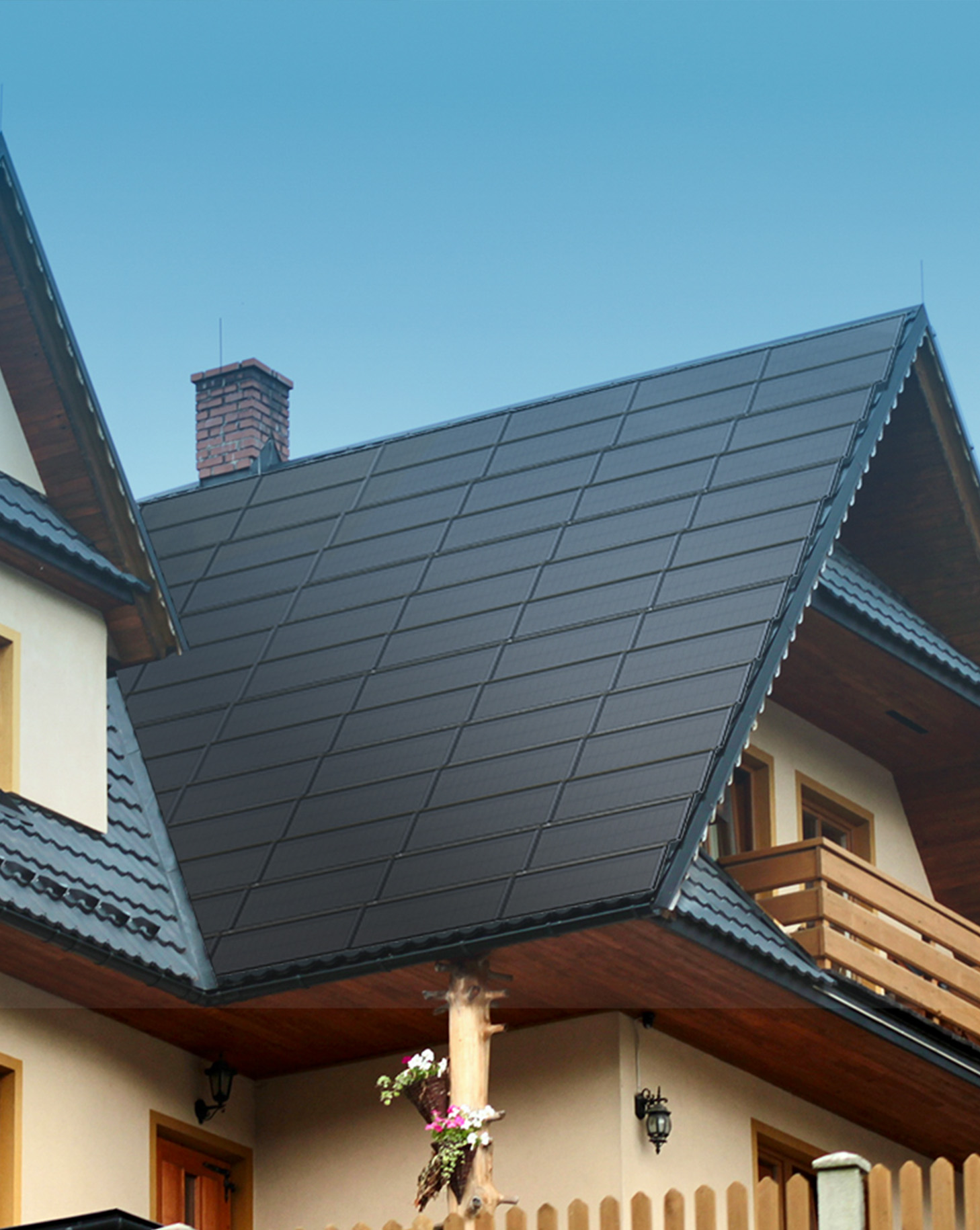

Integrated solar roof tile
Durable structure designed for pitched rooftops, offering high-efficiency power generation
-
Integrated tempered double-glass structure
Double-layer 3.2 mm tempered glass, with a pressure resistance of up to 5400 Pa
-
Enhanced safety standards
Class A fire rating, superior structural waterproofing, and wind resistance up to level 15
Multiple Application Scenarios
Sunshine Series offers a building-matched lifecycle, ideal for pitched roof systems on villas, hotels, community, and public buildings.
-

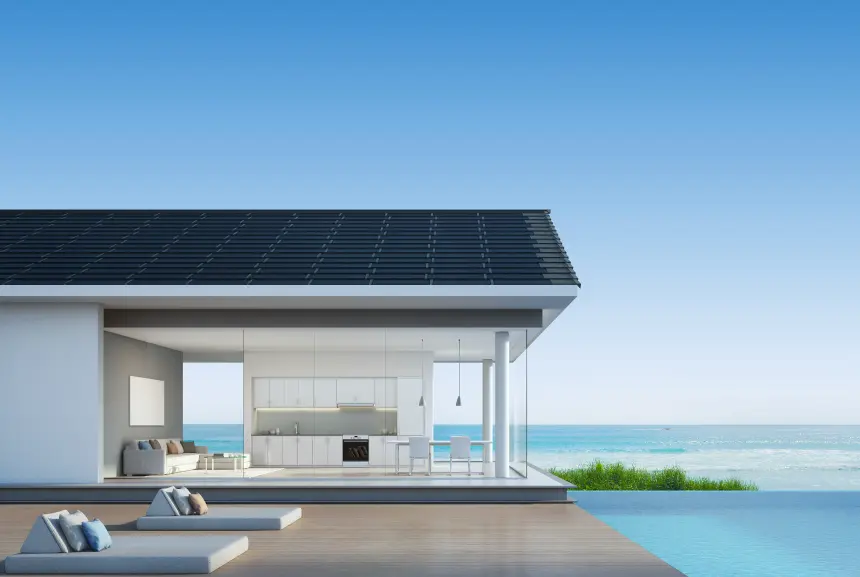

Villa
-

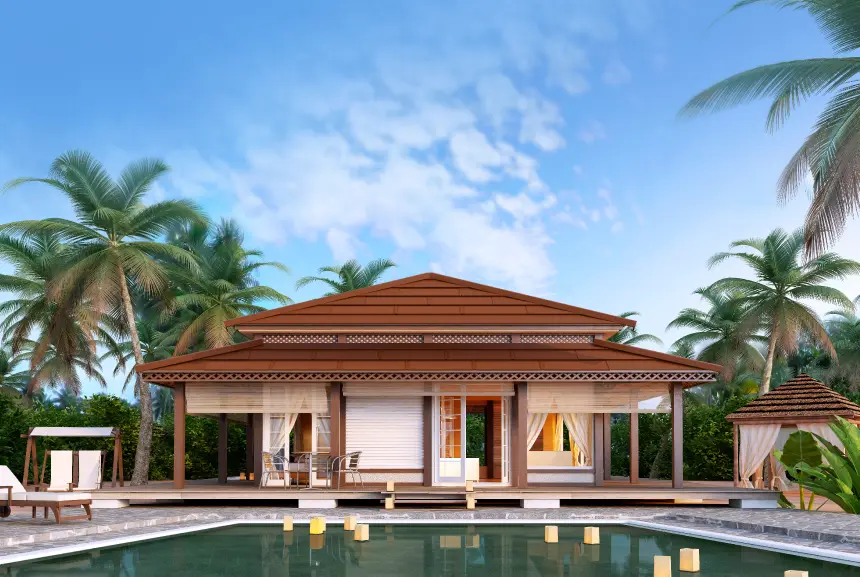

Hotel
-

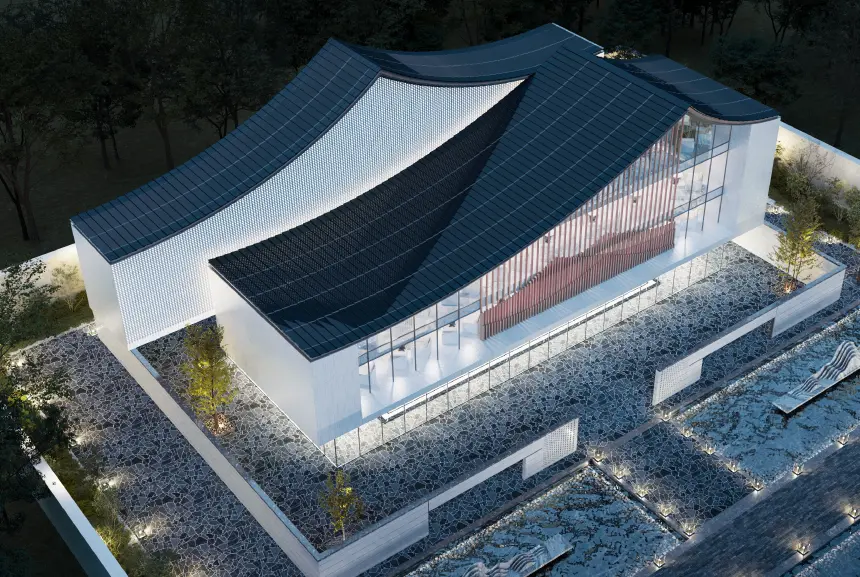

Public Buildings
-

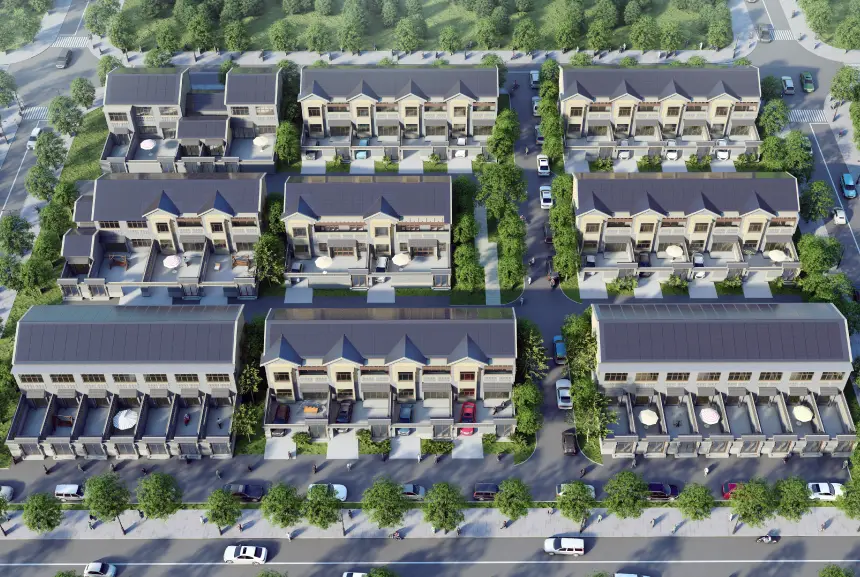

Community
Technical Specs
-
Sunshine 120W
-
BMT-S2/032ASunshine 120W
-
Power
120W
-
Size
1588±2*490±1*23.5±1mm
-
Weight
14±0.5kg
-
Cell
N-type Topcon
-
Load Capacity
5400Pa
-
Protection Class
II
-
Fire-resistant Class
A
-
Hail Resistance
HW3
-
Power/㎡ (W/㎡)
191W/㎡
Download -

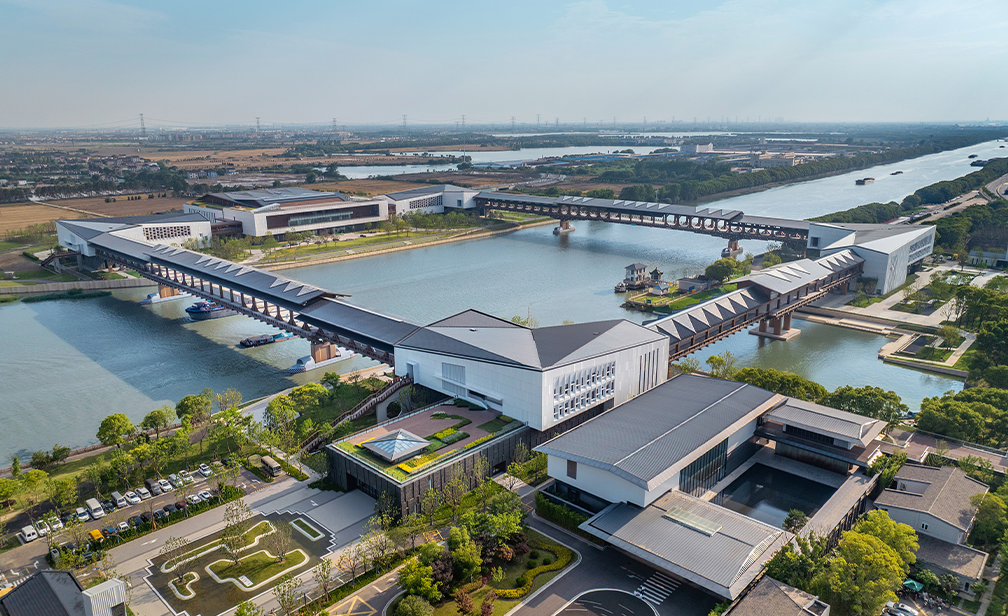

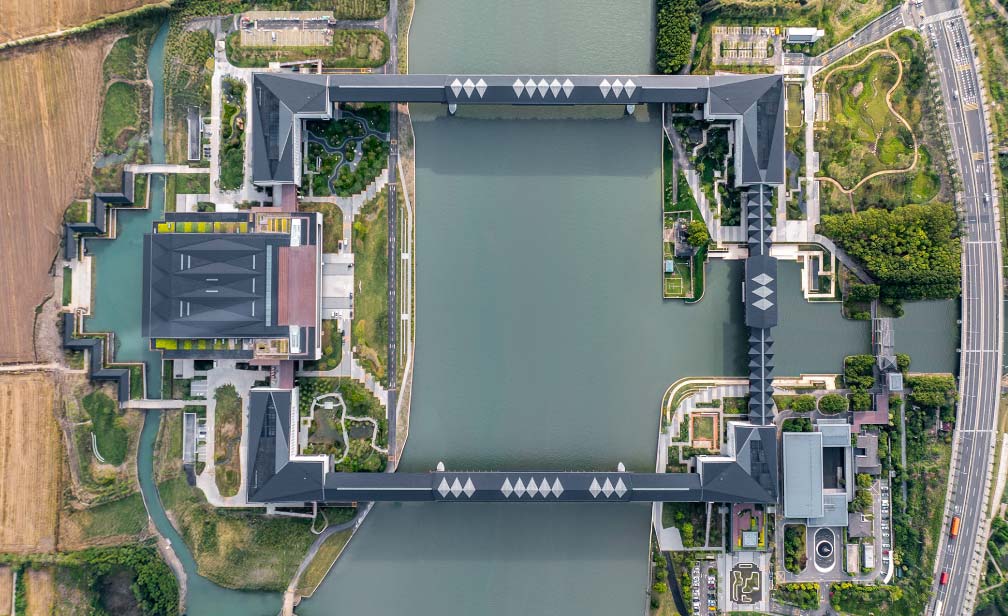

Cases
-
GoodWe Enables Australian Homeowners with Residential Solar Tile Solution to Go EcoSmartPower Generation Capacity: 2.1kW
Area：Brisbane, Australia
Product：Sunshine Series
-

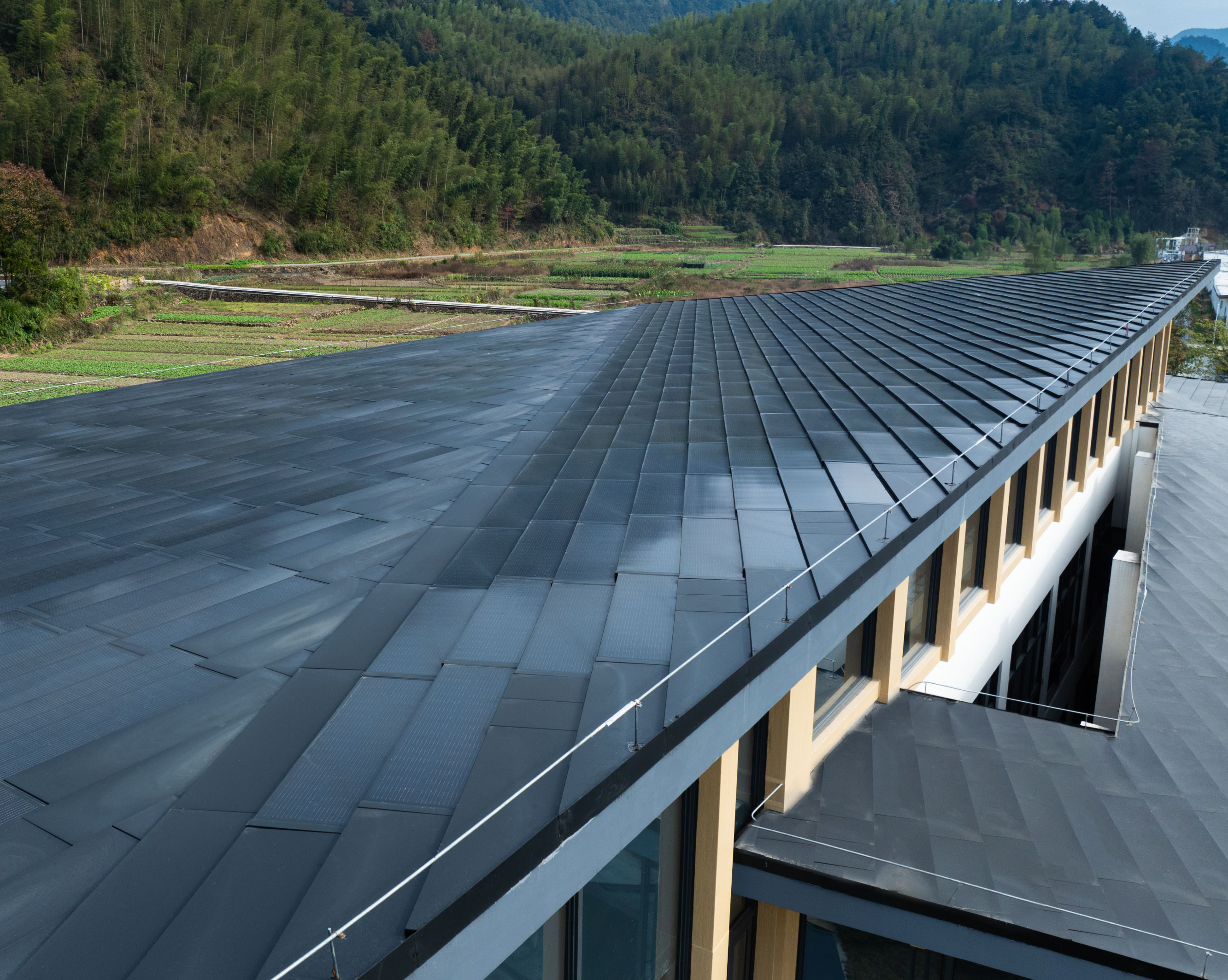

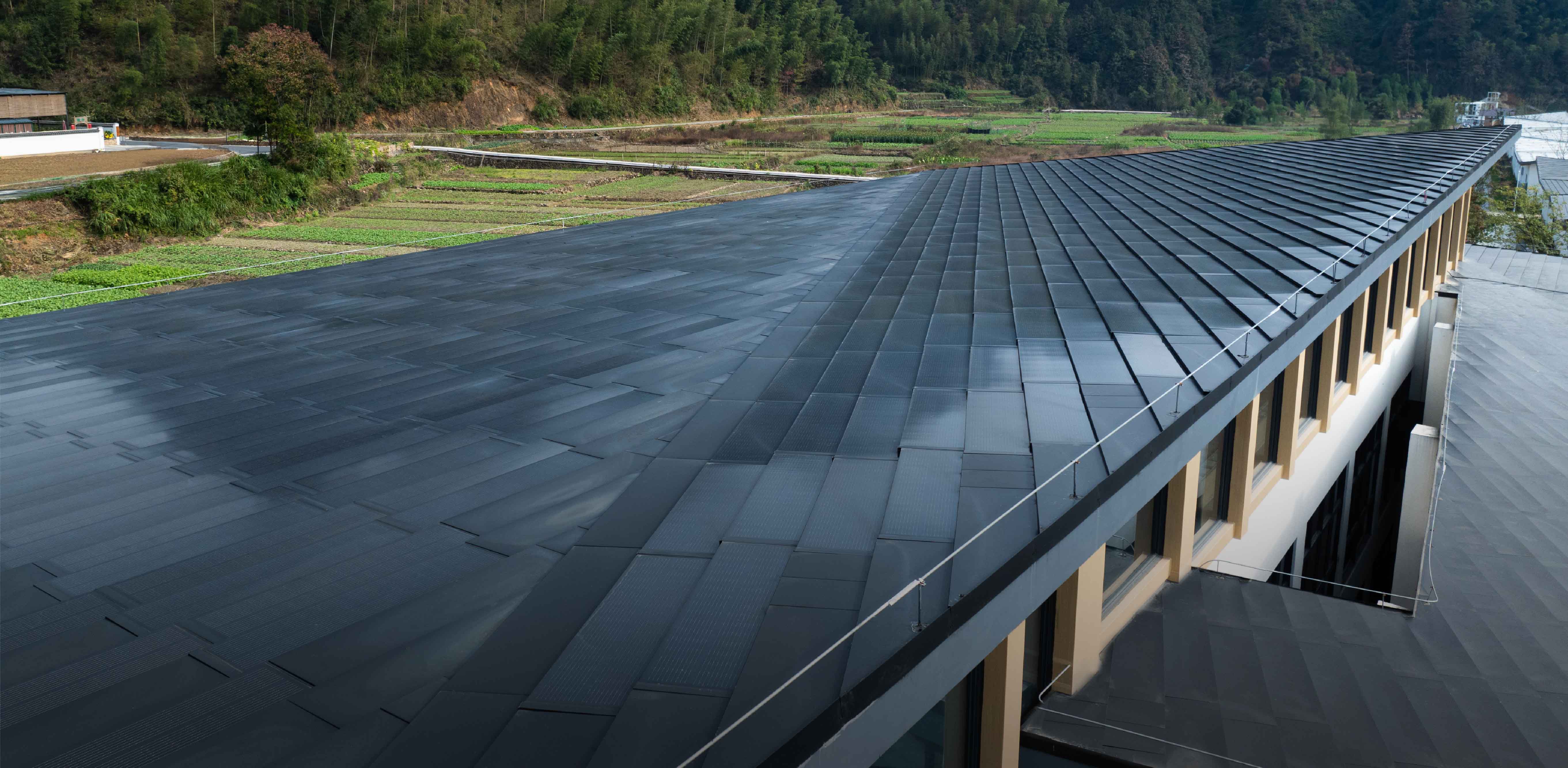

Xichun Kindergarten ProjectPower Generation Capacity: 104.8 kW
Area：Guangde, China
Product：Sunshine Series
-
Xiajiang Village Community Center ProjectPower Generation Capacity: 71.7 kW
Area：Hangzhou, China
Product：Sunshine Series
FAQ
-
QWhy is it recommended to stagger the joints when overlapping Sunshine Tiles?
Staggering the joints prevents straight-through gaps between the upper and lower photovoltaic tiles, effectively blocking rainwater from seeping into the roof structure. In stormy weather, even if some rainwater enters from the edge of an upper-layer tile, the lower-layer tile will block it, preventing direct leakage into the house. This helps extend the roof's lifespan and reduces water leakage issues.
-
QWhat material is the frame of Sunshine Tile made of?
The frame is made of anodized aluminum alloy, offering a 12-year warranty and an expected lifespan of 40 years.
-
QCan Sunshine tiles be trimmed for edges?
No, they are not designed for cutting. Sunshine tiles work together with regular tiles to form the roof system. For edge trimming, use cuttable regular tiles.
