More Than Power Generation, It's a Long-Lasting Asset.
Atlas Series | C&I Heavy Steel Solar Carport
-
Windproof Strength
-
Waterproof Build
-
AI Monitoring
-
Custom Capacity

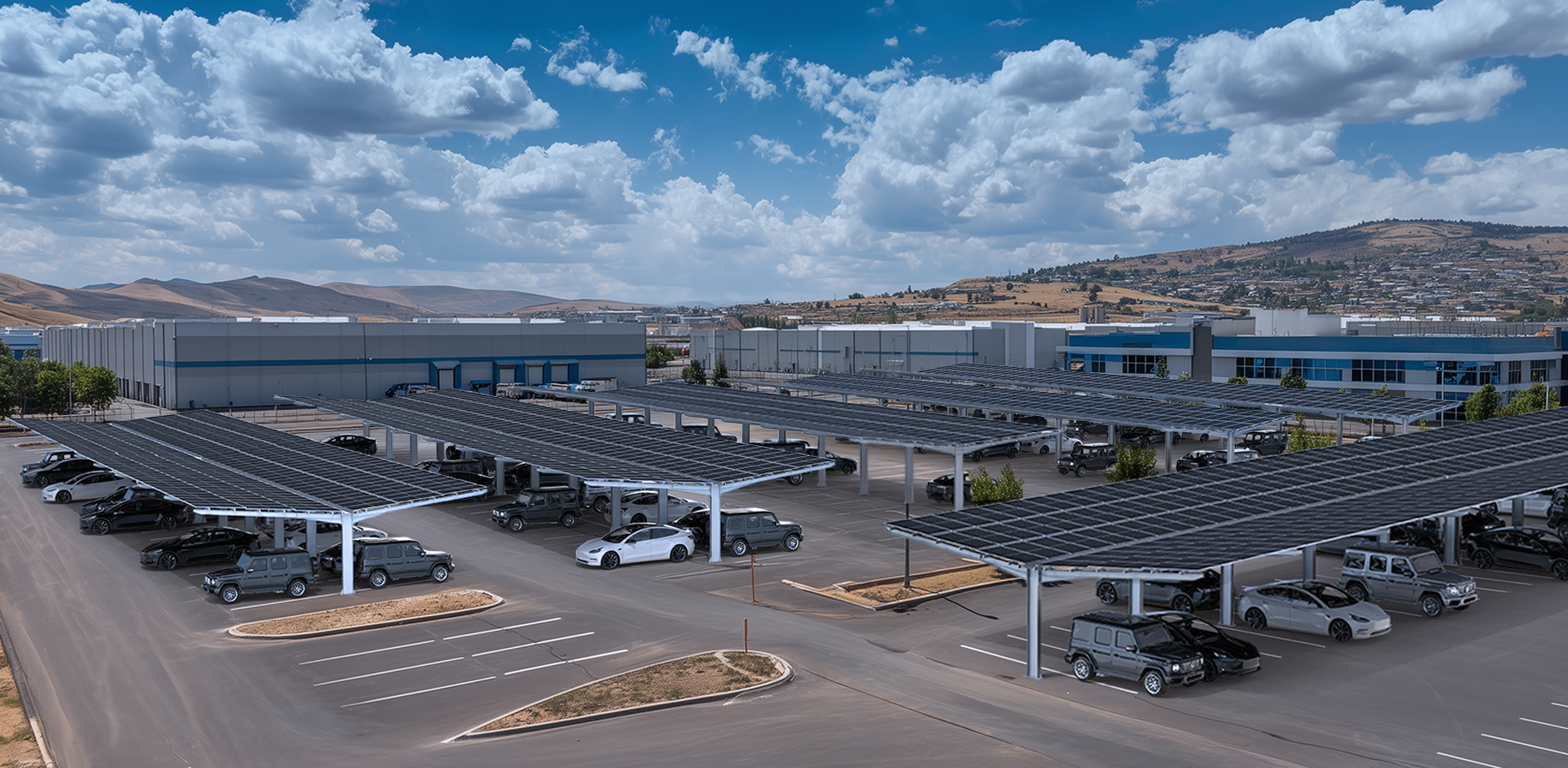

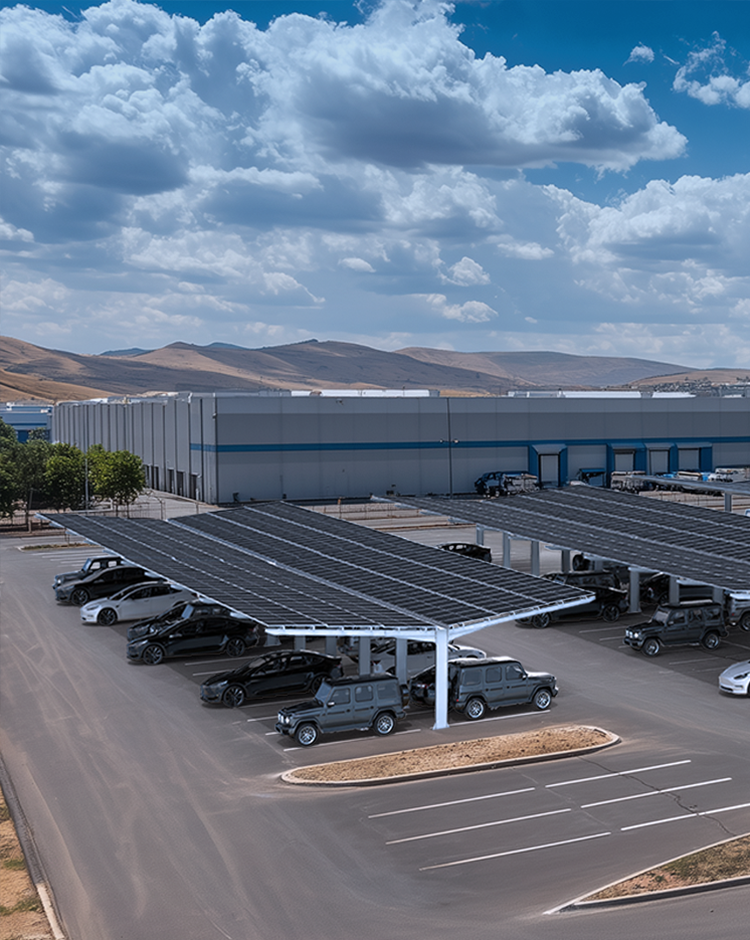

Heavy Steel Solar Carport for Commercial Use
Built with robust structural steel, the heavy-duty solar carport offers greater load capacity and durability than light-steel models. Ideal for large commercial or industrial sites, it delivers wide-span shading, stable solar generation, and long service life. Designed for high-traffic environments, it easily integrates EV charging and lighting, making it a strong statement of sustainable infrastructure.
Hassle-free Installation
-
![重钢icon-抗风雪.png]()
Strong Against Wind, Snow, Impact
Built with high-strength steel and tested for extreme conditions, ensuring lasting performance and safety in any environment.
-
![Modular & Scalable Design.png]()
Customisable from 30 Car Parks
Flexible, modular design easily adapts to different site layouts — perfect for projects of any scale.
-
![Integrated Waterproof Panels.png]()
Built-In Waterproof Design
Innovative sealing and drainage system keep every connection dry and protected — no extra waterproofing needed.
-
![重钢icon-AI级别监控.png]()
AI-Ready Module Level Monitoring
Stay in control with smart, AI-enabled monitoring for real-time performance insights and preventive maintenance.
Heavy Steel Solar Carport Structure Details
-
![]()

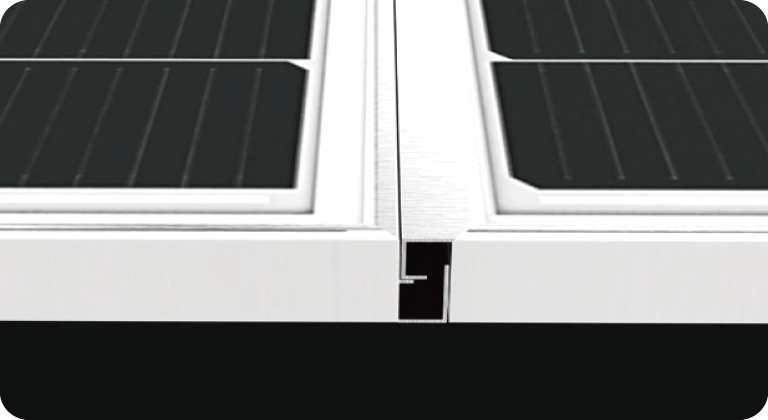

![1.png]()
Waterproof Design -
![]()

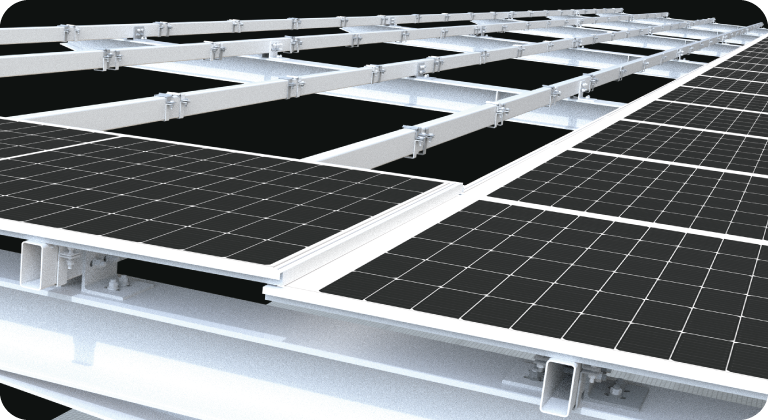

![2.png]()
Overlap Protection -
![]()

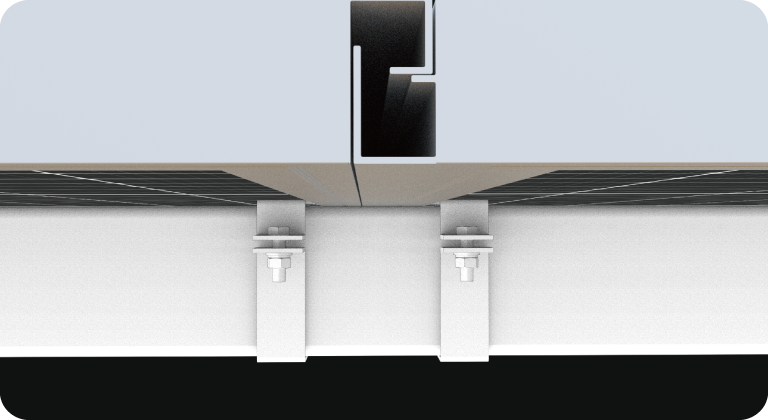

![3.png]()
Hidden Fixings -
![]()

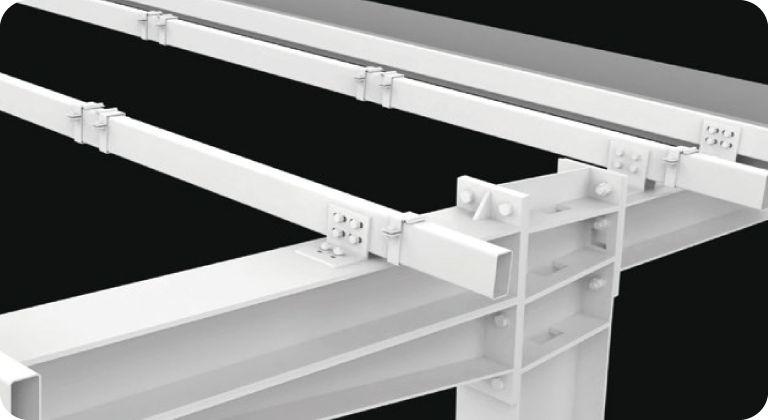

![4.png]()
Bolt Assembly -
![]()

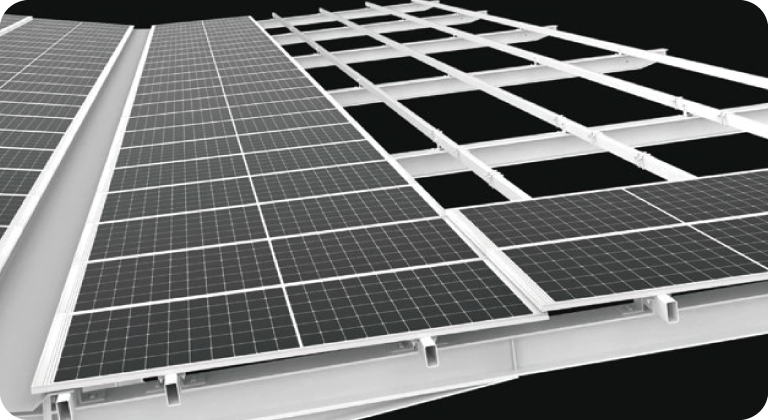

![5.png]()
Modular Frame -
![]()

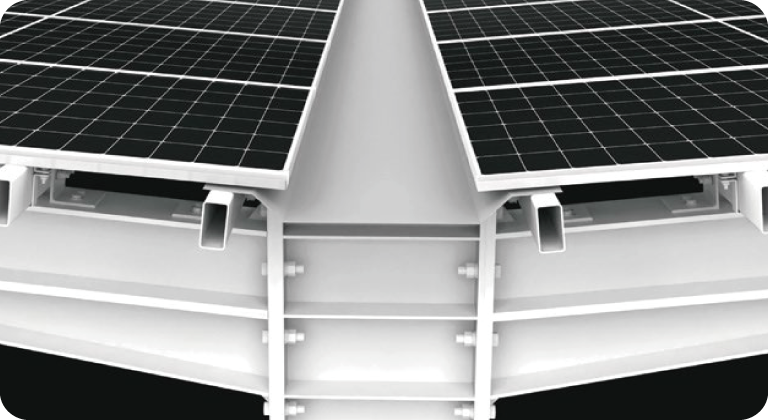

![6.png]()
Water Management

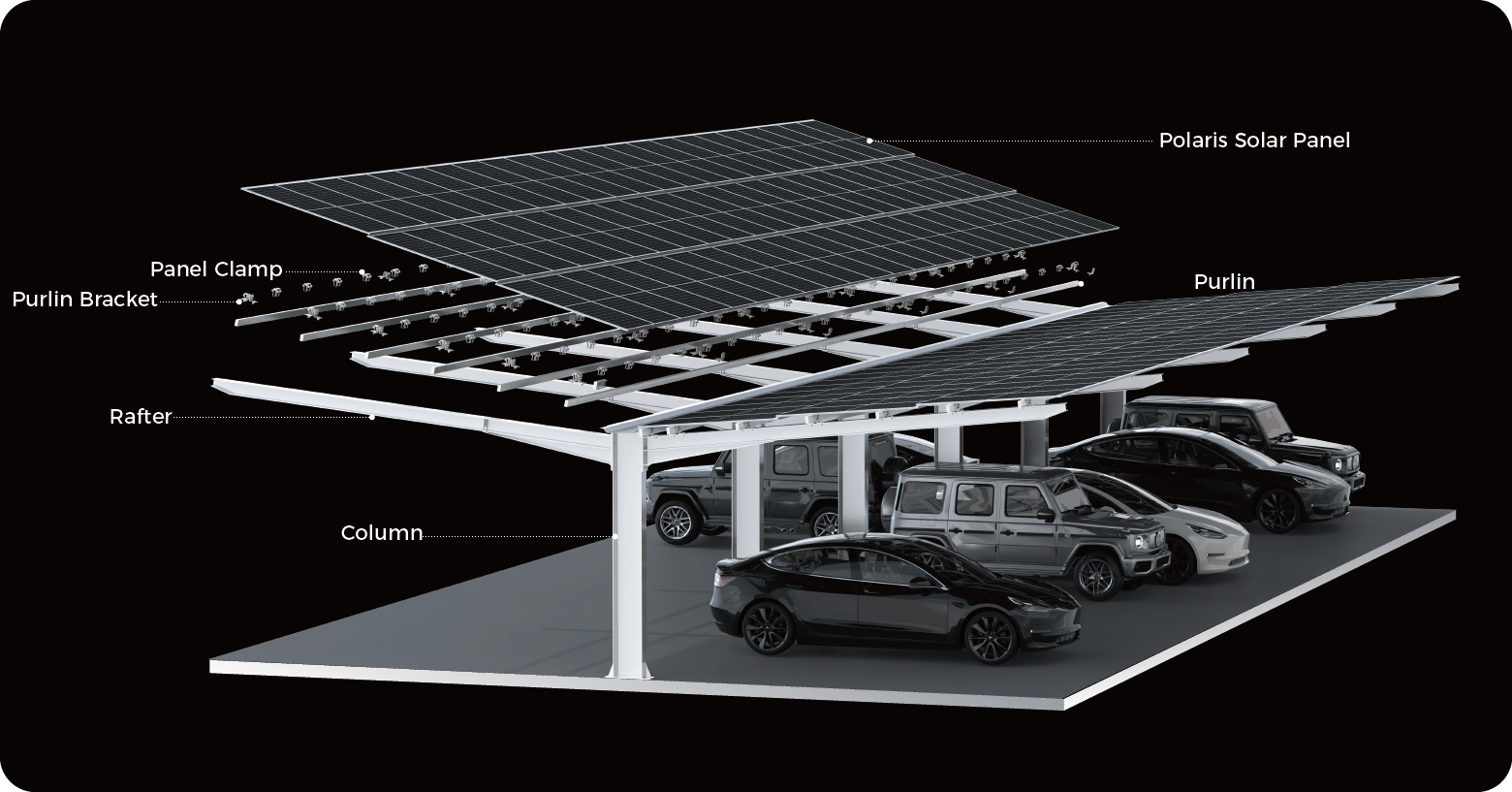

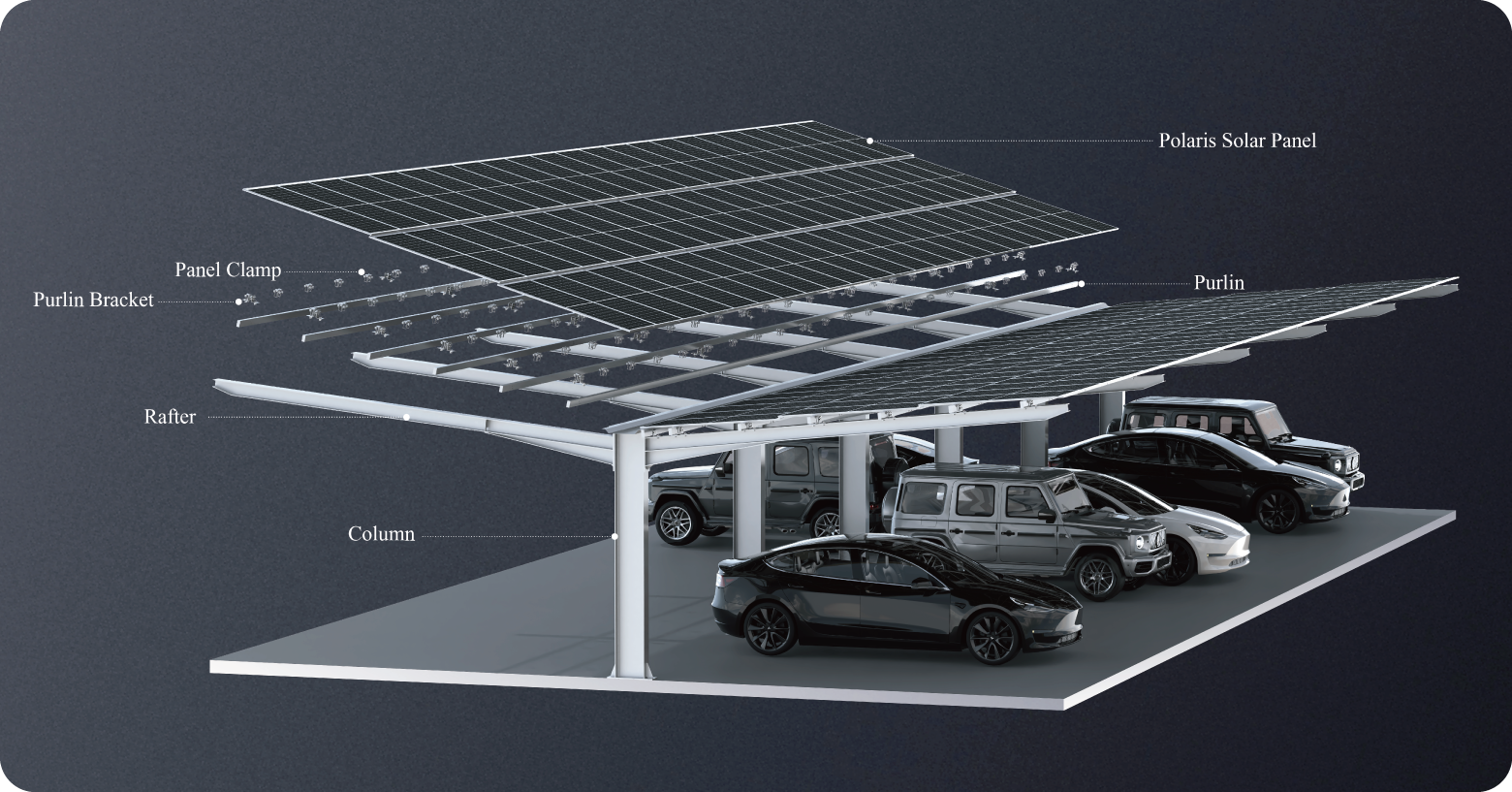

Anatomy of a Cantilever
Heavy Steel Solar Carport Specifications
-
10 Parking Space
-
20 Parking Space
Single Side
-
Material
Heavy Steel
-
Structure System
Welded Frame, Bolted Assembly.
-
Design Life
25 Years
-
System Size
35.64 kW
-

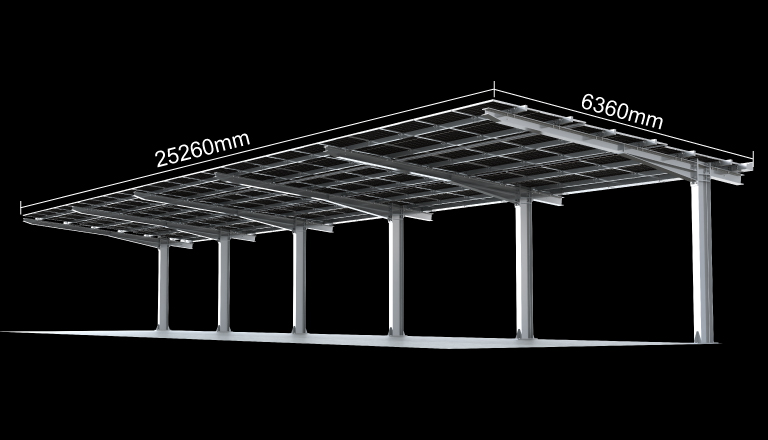

Length
6360 mm
-
Structure Width
25000 mm
-
Total Panel Width
25260 mm
-
Clearance Height
3000 mm
-
Peak Height
4200 mm
-
No. of Panels
540 W x 66 PCS
Download
Double Side
-
Material
Heavy Steel
-
Structure System
Welded Frame, Bolted Assembly.
-
Design Life
25 Years
-
System Size
71.28 kW
-
Length
12720 mm
-
Structure Width
25000 mm
-
Total Panel Width
25260 mm
-
Clearance Height
3000 mm
-
Peak Height
4200 mm
-
No. of Panels
540 W x 132 PCS
Download
Why Cantilever? The Clear-Span Advantage.
-
![CertifiedCompliant-402.png]()
Integrated Diverse Applications
-
![FastDesignInstallation-684.png]()
Fast lnstallation
-
![ModularScalableDesign-882.png]()
High Power Generation
-
![qinggangiconnaijiuxing.png]()
High lmpact Resistance
-

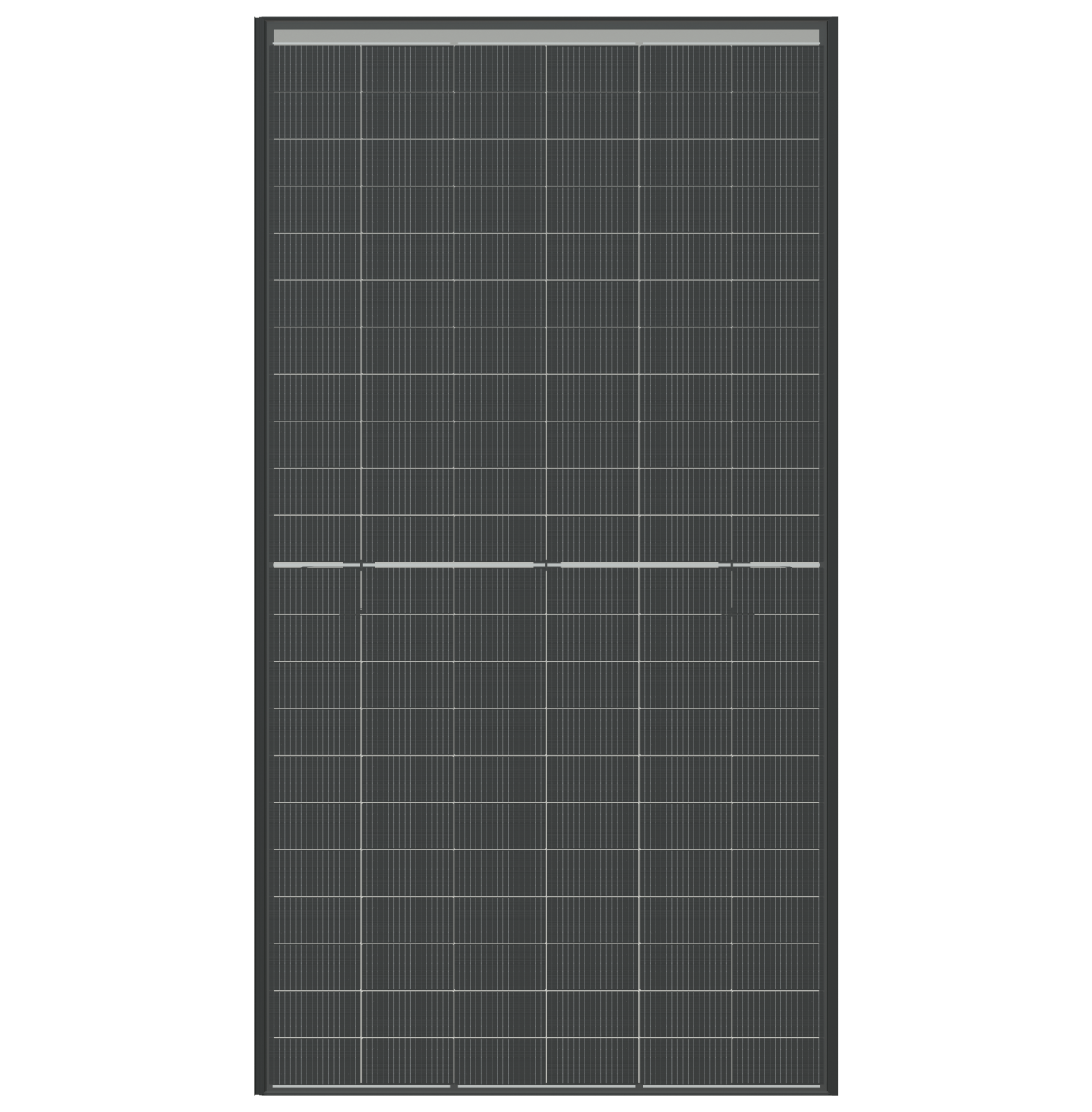

Size
2142±2*1160±2*29.6±1mm
-
Weight
30.1±0.5kg
-
Cable
4 mm²
-
Cell Type
N-Type TOPCon Half Cells (132pcs)
-
Power (W)
540W
-
Efficiency (%)
21.5%
-
Power/㎡ (W/㎡ )
217W/㎡
-
Voltage at Max Power (Vmpp)
41.70V
-
Current at Max Power (Impp)
12.95A
-
Fire-resistant Class
A
-
Protection Class
II
-
Max Rear Side Static Load
2400Pa
