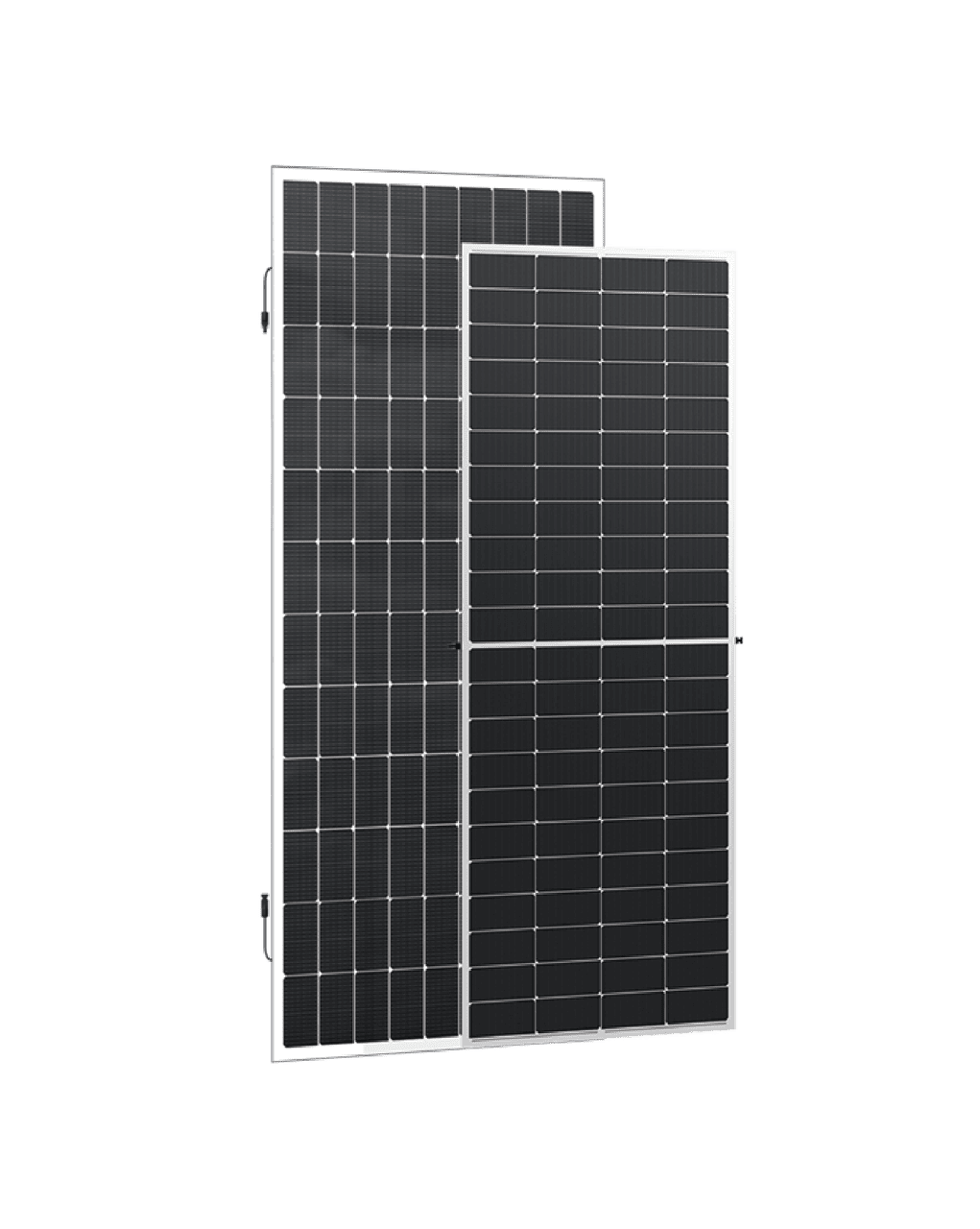

Galaxy Series
Ultra-lightweight Solar Panel
-
Feather-Light, Steel-Tough
-

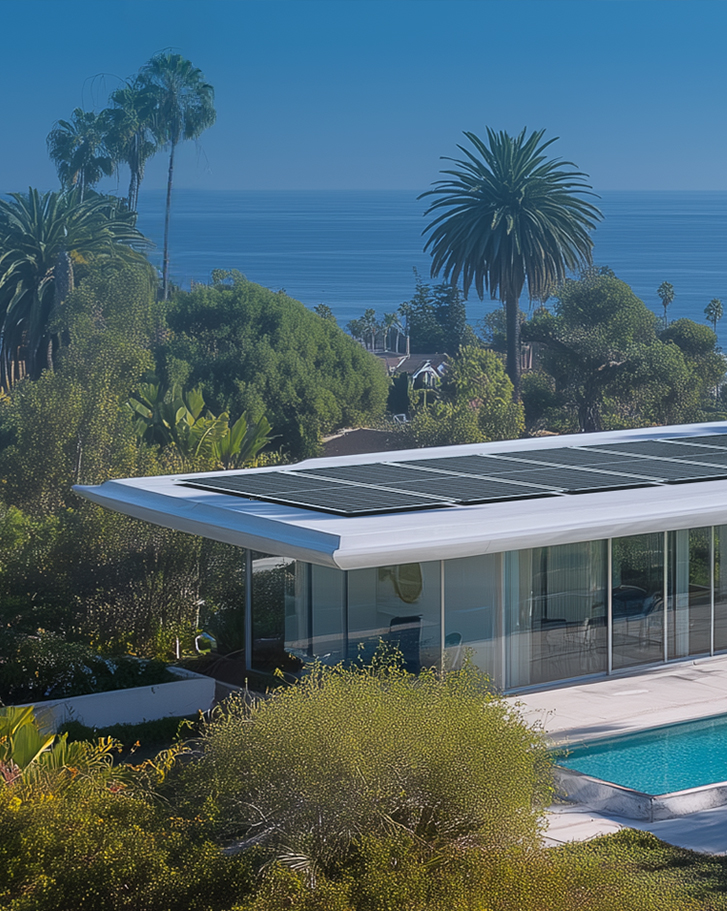

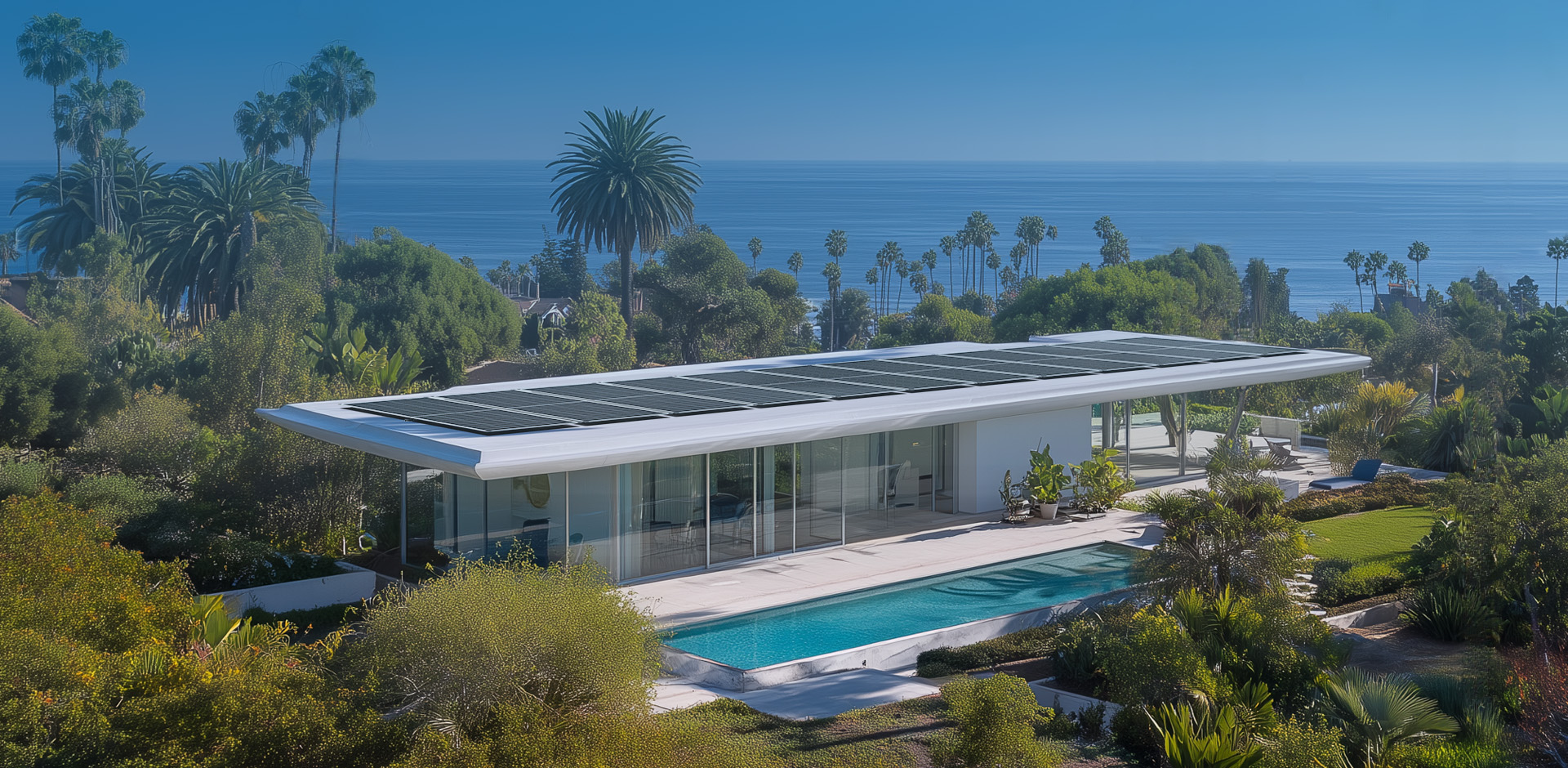

Ideal for C&I Roof Tops/ Patio/Pergola/Shed & Solar Trailer/Flat Roof
The Galaxy Series is a lightweight BIPV solution ideal for industrial and commercial roofs. Its frameless design and 1.6mm ultra-thin glass ensure durability against harsh weather while allowing efficient power generation. Easy to install, it saves time and labor costs.
-
5.6kg/m² Ultra-lightweight
-
No Roof Penetration
-
3 min/pc Rapid Installation
-
Hail Proof 25mm Diameter @23m/s
-
Strong Wind and Hail Resistance
-
Up to 214W/m² of Power Generation
-
5.6kg/m² Ultra-lightweight for low-bearing roofs
3 min/pc rapid installation
-
No Roof Penetration
Minimize risks of leakage, ensuring safety and efficiency
-
Strong Wind and Hail Resistance
1.6mm tempered glass on the front surface
Maximum static snow load up to 5400Pa
Multiple Application Scenarios
-
Color Steel Tiles
-
Concrete Roof
-
Flat/Trapezoidal Roof
-

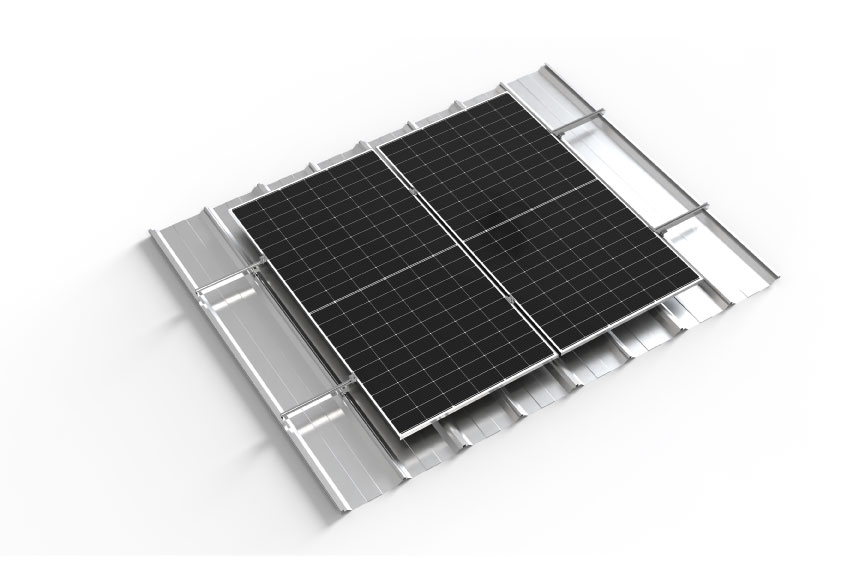

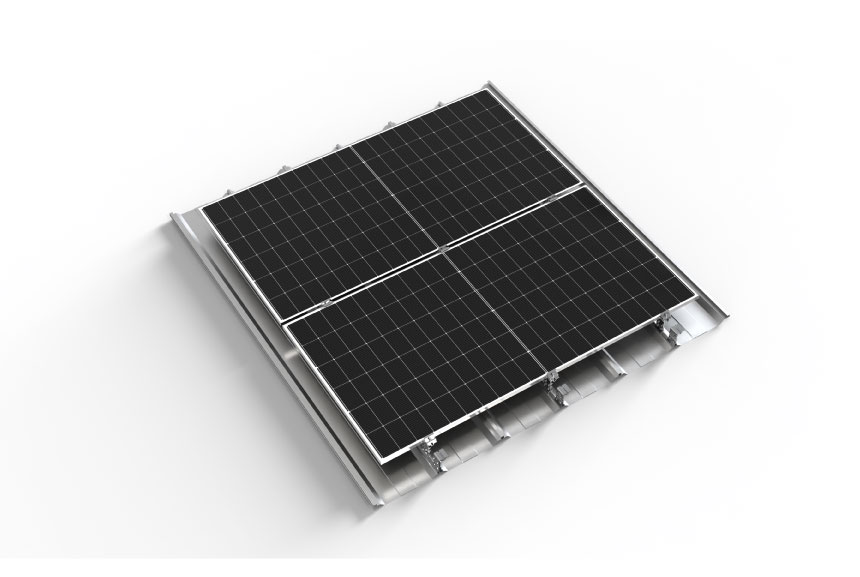

Galaxy lightweight modules are ideal for corrugated steel roofs, securely installed with clamps and requiring no additional reinforcement. The unique ventilation design effectively reduces module temperature, minimizing thermal expansion impact and improving power generation efficiency.
-
Galaxy lightweight modules significantly reduce load pressure on concrete roofs. With both clamp fixing and adhesive bonding options available, they adapt flexibly to various complex substrates, making them an ideal solution for concrete roof PV retrofits
-
Galaxy modules are suitable for both flat and trapezoidal roofs. Flat roofs can be installed with support tube adhesive bonding, while trapezoidal roofs allow direct adhesive installation, enabling quick and efficient construction - ideal for large-scale commercial and industrial deployments.
Technical Specs
-

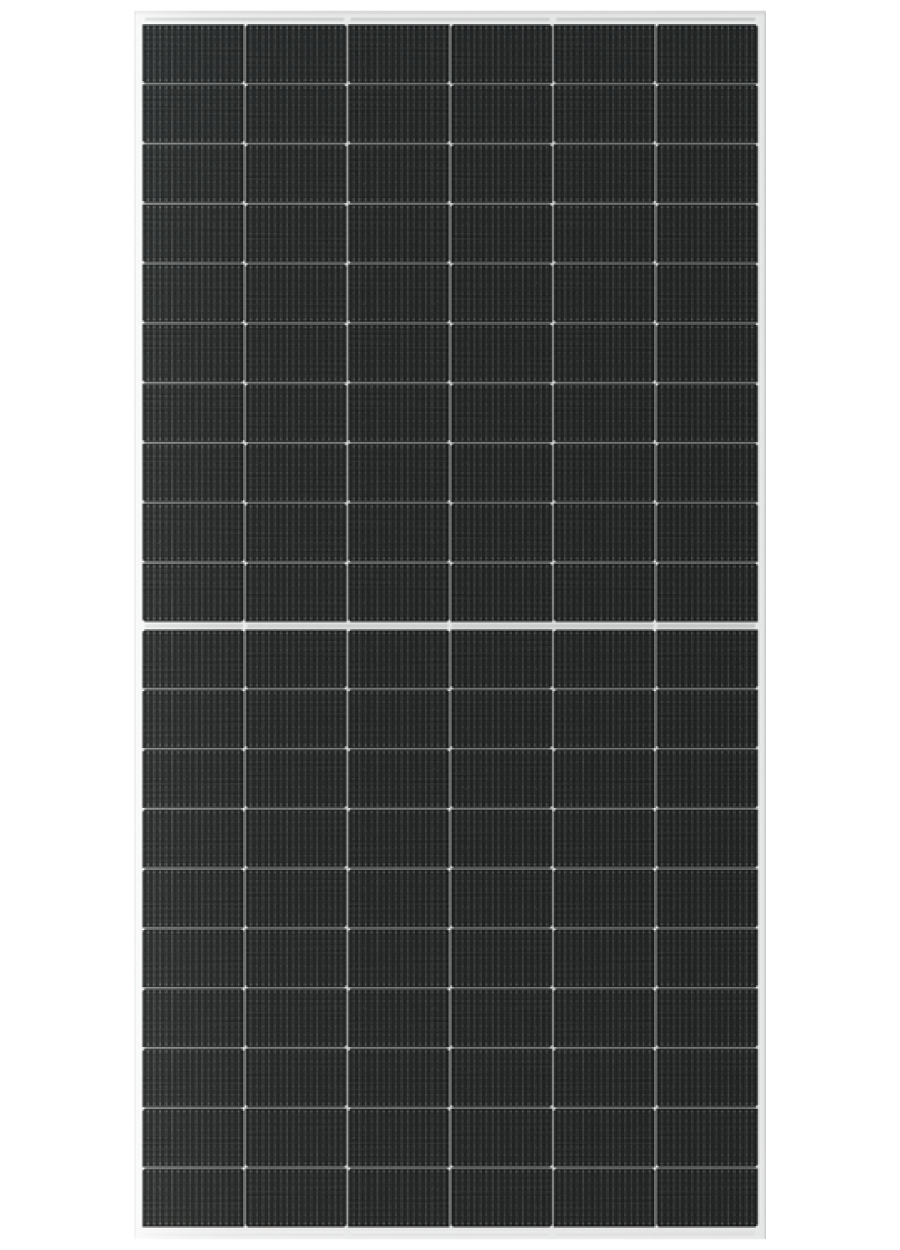

Galaxy 335W
-
Galaxy 355W
-
Galaxy 440W
-
Galaxy 365W
-
Galaxy 360W
-

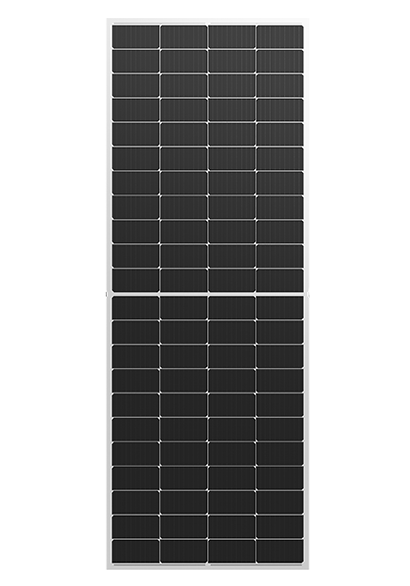

BMT-G4/088AGalaxy 335W
-
Power
335W
-
Size
2116±2*777±2*3.5±1mm
-
Weight
5.6±0.4kg/m²
-
Cell
Mono PERC Half
-
Load Capacity
2400Pa
-
Protection Class
II
-
Fire-resistant Class
C
-
Power/㎡ (W/㎡ )
204W/㎡
-
-

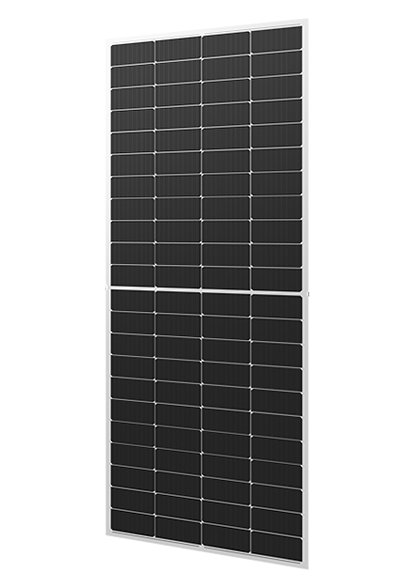

BMT-G4/088AGalaxy 355W
-
Power
355W
-
Size
2138±2*780±2*5±1mm
-
Weight
9.3±0.7kg
-
Cell
N-type Topcon
-
Load Capacity
2400Pa
-
Protection Class
II
-
Fire-resistant Class
C
-
Power/㎡ (W/㎡ )
213W/㎡
Download -
-

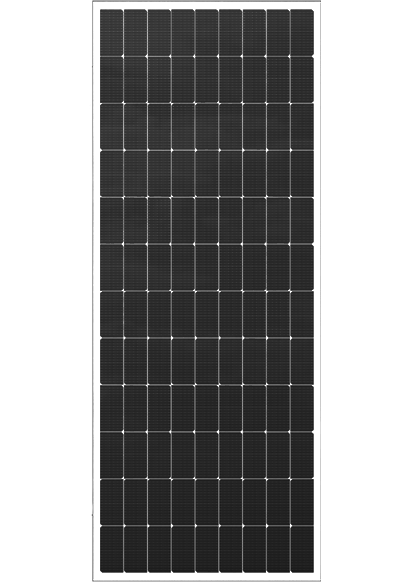

BMT-G4/108AGalaxy 440W
-
Power
440W
-
Size
2275±2*905±2*5±1mm
-
Weight
11.5±0.8kg
-
Cell
N-type Topcon
-
Load Capacity
2400Pa
-
Protection Class
II
-
Fire-resistant Class
C
-
Power/㎡ (W/㎡ )
214W/㎡
-
-

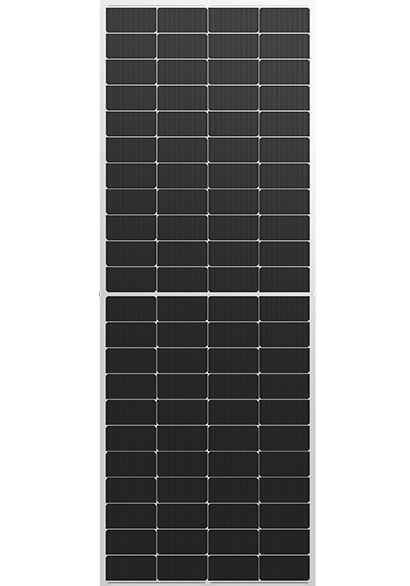

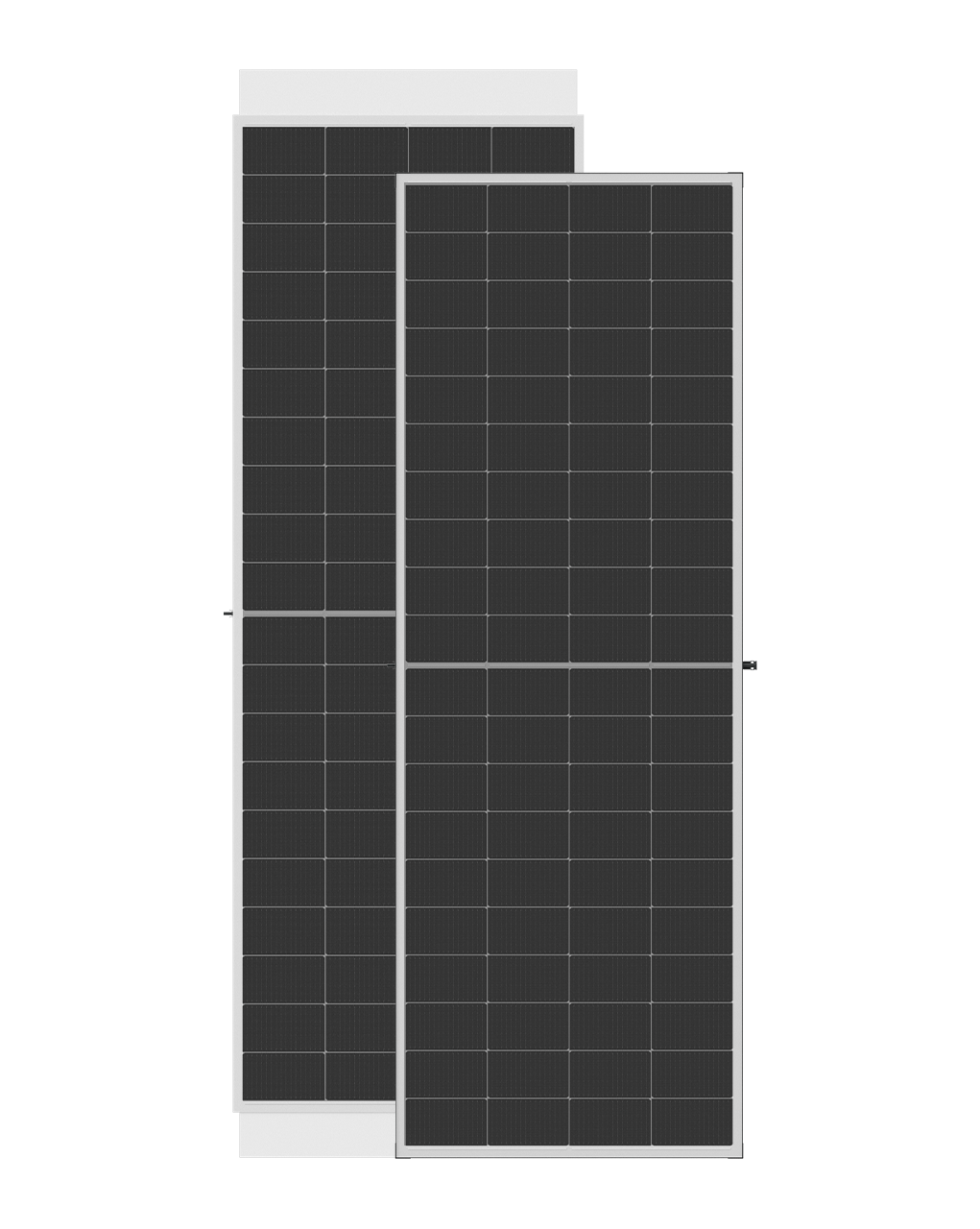

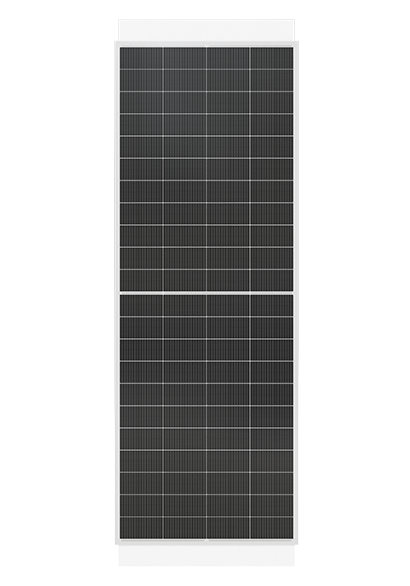

BMT-G4/088AGalaxy 365W
-
Power
360W
-
Size
2138±2*780±2*5±1mm
-
Weight
9.3±0.7kg
-
Cell
N-type Topcon
-
Load Capacity
2400Pa
-
Protection Class
II
-
Fire-resistant Class
C
-
Power/㎡ (W/㎡ )
219W/㎡
Download -
-

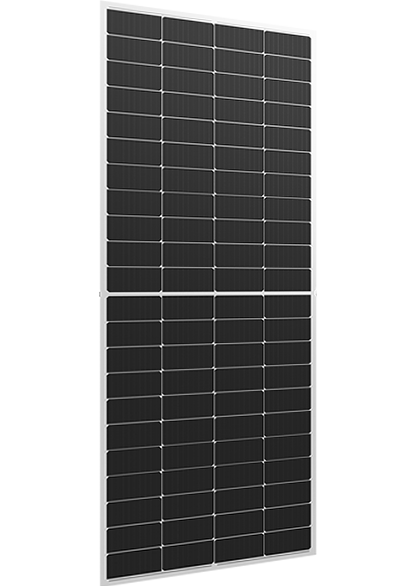

BMT-G4/088AGalaxy 360W
-
Power
360W
-
Size
2138±2*780±2*5±1mm
-
Weight
9.3±0.7kg
-
Cell
N-type Topcon
-
Load Capacity
2400Pa
-
Protection Class
II
-
Fire-resistant Class
C
-
Power/㎡ (W/㎡ )
216W/㎡
Download -

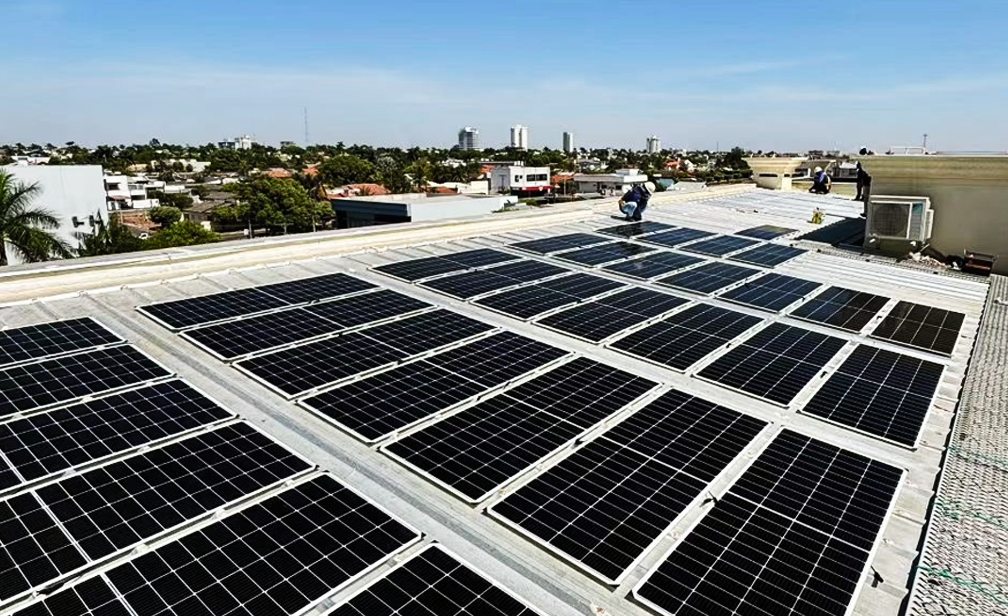

Cases
-
Alspec C&I Low-bearing Roof ProjectPower Generation Capacity: 600 kW
Area：Brisbane, Australia
Product：Galaxy Series
-
Alspec C&I Low-bearing Roof ProjectPower Generation Capacity: 500 kW
Area：Sydney, Australia
Product：Galaxy Series
-
Bitumen Flatroof ProjectPower Generation Capacity: 11.4 kW
Area：Aalbborg, Denmark
Product：Galaxy Series
FAQ
-
QDoes Galaxy require grounding?
Grounding depends on mounting materials:
PPO tubes: Not required
Metal supports: Required
-
QWhat is the purpose of elevating strips in Galaxy clamp installation?
Elevating strips optimize roof clearance by:
Reducing panel-to-rib gaps
Minimizing wind-load vibrations
-
QDoes GoodWe supply the adhesive or can we source it separately?
For guaranteed performance and warranty coverage, we:
Pre-qualify adhesives through rigorous testing
Provide recommended product specifications
